Vehicle Info NeededKYBPART NUMBER: 575-565032

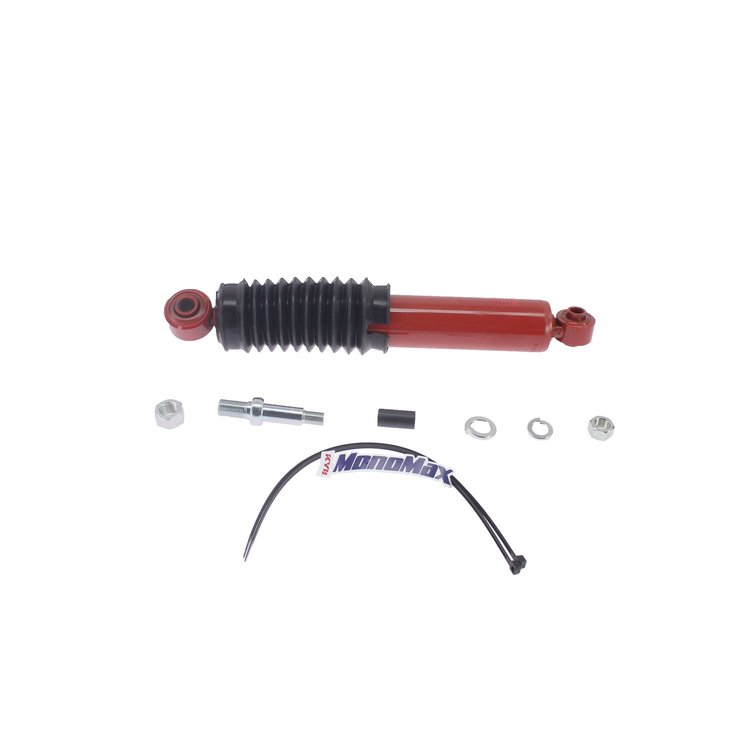

565032 MonoMax Shock Absorber for 1963-1999 Chevrolet and GMC Models
$8473
Ships on 09/16/2026
Lowest Price GuaranteeGM
MonoMax Shock Absorber1963-1999 Chevrolet and GMC Models See Fitment Tab for All Applications Front Compressed Length: 10.43 in. Extended Length: 14.53 in. Dust Cover Included Sold Individually
The KYB 565032 MonoMax Shock Absorber is a direct-fit front unit designed to restore your vehicle's original ride control and handling.
KYB 565032 MonoMax Shock Absorber Features:
- Maximum performance upgrade with up to 40% more damping performance than standard shock absorbers
- Perfect solution when you need to upgrade the suspension performance on your GM truck
- Truck monotube design outperforms all other standard shock absorbers
- Zinc-coated, stainless steel piston ring provides a positive seal in the most extreme conditions
- Rubber boot to protect the shaft and keep dirt and debris away from the seals
- Compressed Length: 10.43 in.; Extended Length: 14.53 in.
- Dust Cover Included
- Internal Rebound Bumper Included
- Sold Individually
Heavy-Duty Shocks for Better Vehicle Control
KYB MonoMax Shocks are engineered to improve handling and control for sport utility and light duty truck applications. Their high-pressure monotube design provides a safer, more stable ride. All KYB Shocks have a lifetime warranty. Sold Individually.
Part TypeShock Absorber
Product LineKYB MonoMax Shocks for Truck/SUV
BrandKYB
Package Height3.2
Package Width3.3
Package Length26.7
Weight4.4 PG
Part CategoryReplacement Parts
Body TypeVarious - Application Specific
Lower Mount TypeE2(12.8X35)
Compressed Length10.43
PositionFront
Extended Length14.53 in (369.062 mm)
Dust Cover IncludedYES
Stroke Length4.09
Bump Stops IncludedNO
Part FitmentDirect Fit
Upper Mount TypeE2(16X35)
Vendor Part Number565032
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
