Vehicle Info NeededKYBPART NUMBER: 575-565066

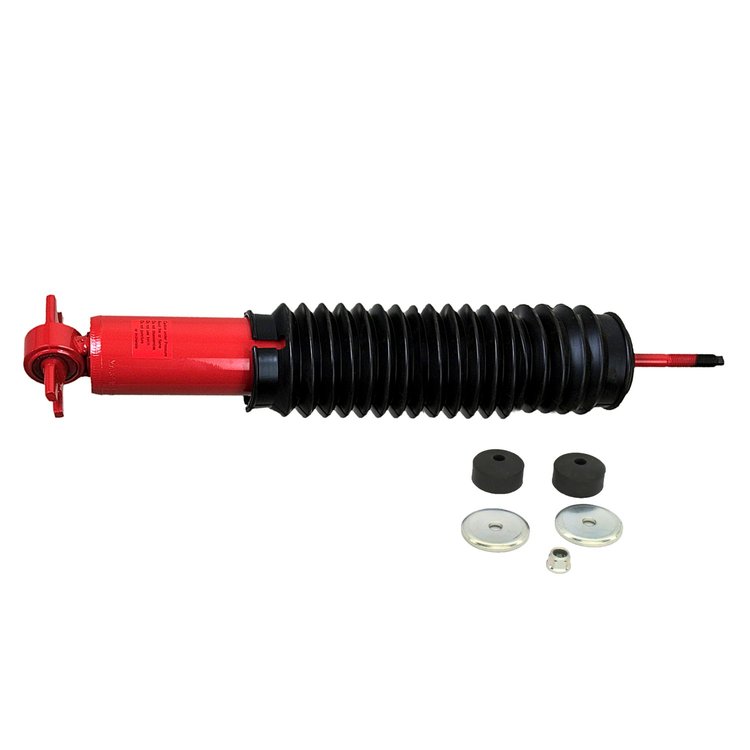

565066 MonoMax Shock Absorber for 1999-2007 Chevrolet and GMC Models
$8728
Ships on 09/21/2026
Lowest Price GuaranteeGM
MonoMax Shock Absorber1999-2007 Chevrolet and GMC Models See Fitment Tab for All Applications Front Compressed Length: 9.84 in. Extended Length: 14.33 in. Dust Cover Included Sold Individually
The KYB 565066 MonoMax Shock Absorber is a direct-fit front unit designed to restore your vehicle's original ride control and handling.
KYB 565066 MonoMax Shock Absorber Features:
- Maximum performance upgrade with up to 40% more damping performance than standard shock absorbers
- Perfect solution when you need to upgrade the suspension performance on your GM truck
- Truck monotube design outperforms all other standard shock absorbers
- Zinc-coated, stainless steel piston ring provides a positive seal in the most extreme conditions
- Rubber boot to protect the shaft and keep dirt and debris away from the seals
- Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
- Compressed Length: 9.84 in.; Extended Length: 14.33 in.
- Dust Cover Included
- Internal Rebound Bumper Included
- Sold Individually
Heavy-Duty Shocks for Better Vehicle Control
KYB MonoMax Shocks are engineered to improve handling and control for sport utility and light duty truck applications. Their high-pressure monotube design provides a safer, more stable ride. All KYB Shocks have a lifetime warranty. Sold Individually.
Part TypeShock Absorber
Product LineKYB MonoMax Shocks for Truck/SUV
BrandKYB
Package Height3.5
Package Width4.0
Package Length27.0
Weight4.18 PG
Part CategoryReplacement Parts
Body TypeVarious - Application Specific
Lower Mount TypeE3(51.6X87X14)
Compressed Length9.84
PositionFront
Extended Length14.33 in (363.982 mm)
Dust Cover IncludedYES
Stroke Length4.49
Bump Stops IncludedNO
Part FitmentDirect Fit
Upper Mount TypeS1
Vendor Part Number565066
Package Qty1
Package TypeEA
