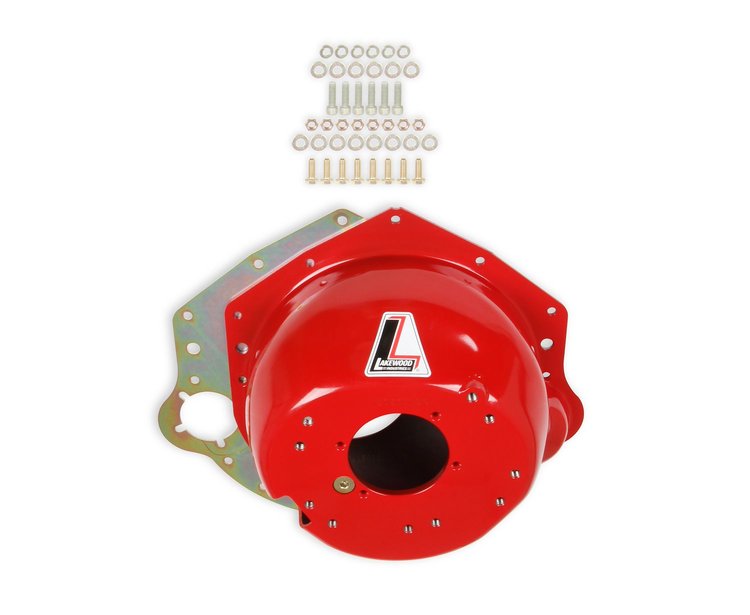

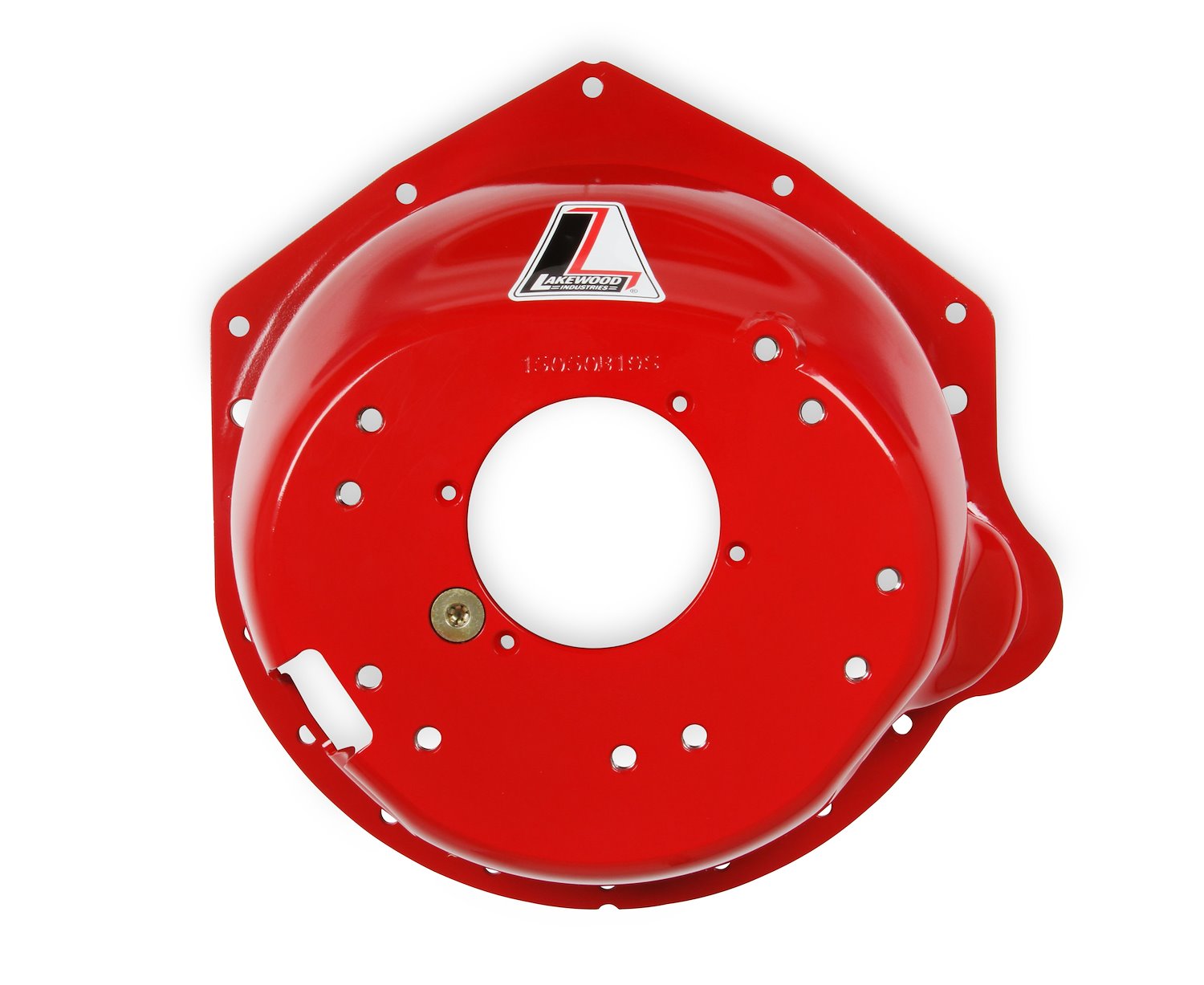

15050 Blowproof Bellhousing 1964-1967 Chevrolet Nova/Chevy II

Name: 15050 Blowproof Bellhousing 1964-1967 Chevrolet Nova/Chevy II
Brand: LAKEWOOD
SKU: 620-15050
Price: 1075.95 USD
Availability: InStock

^$1,075⁹⁵

5 left in stock

Ships Today

Lowest Price Guarantee

Chevy

Blowproof Bellhousing

1964-1967 Chevrolet Nova/Chevy II

1955-2003 Chevy: 90° V6, Small Block, and Big Block

GM Muncie, Saginaw, BW T10, Tremec TKO

Mechanical Linkage

SFI 6.1 Certified

Steel

Red

Lakewood 15050 Blowproof Bellhousing Features:

Designed for 1964-1967 Chevy Nova/Chevy II
Does not fit LS engines
Fits 168 Tooth Flywheel With 11 in. Clutch
Clutch Fork Opening at 7 O'Clock for 1964-1967 Nova's
6.450 in. Depth with Block Plate
2.250 in. x 4.060 in. Fork Opening
4.685 in. Bore Diameter

Minimize the Destructive Effects of a Clutch/Flywheel Explosion
Manufactured from premium 1/4" steel, Lakewood Bellhousings utilize hydroforming. This hydraulic forming process minimizes the thinning of the bellhousing's material while maintaining proper thickness in critical areas. Units are stress relieved after forming for even greater strength and then finished with a safety red enamel.

Tested to meet or exceed SFI Specification 6.1W when used with an approved block plate, Lakewood Steel Bellhousings are designed to contain a clutch or flywheel explosion with possible deformation or elongation of the housing. All bellhousings include the block plate and an SFI Spec 6.1W serial number.

Features

For passenger vehicles as noted
Hydroformed steel yields a uniform 1/4" thickness
Precision drilling guarantees proper bolt hole spacing
Blanchard ground mounting surfaces provide exact engine-transmission alignment
MIG welded thread inserts for transmission bolt pattern and clutch adjustment pivot ball
Block plate included (units predrilled for full-containment block plates)
SFI specification accepted by most major race sanctioning bodies
Heavy-duty clutch linkage brackets where required
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
Click Here for Lakewood Bellhousing Application Guide
