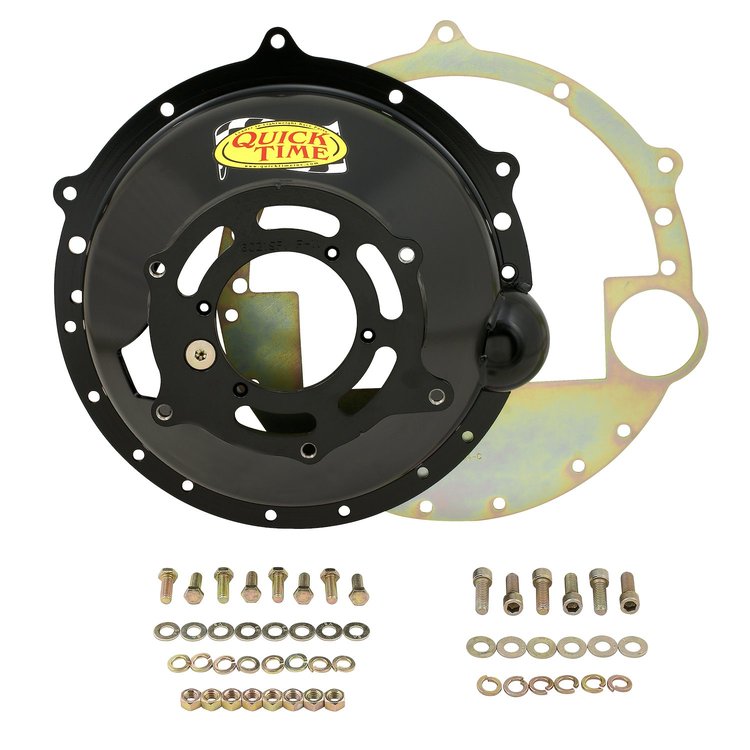

Steel Bellhousing Engine: Small/Big Block Chevy and 1992-96 LT1
- Steel Bellhousing
- Engine: Small/Big Block Chevy and 1992-96 LT1
- Transmission: Muncie, Richmond, Saginaw, Falcon, Bert, Brinn, Borg Warner T-10, Chevy TKO 500-600, Jerico 4-5 Speed
- Flywheel: 153-Tooth or 168-Tooth
- Clutch: 11''
- Also fits 1964-67 Chevy II and 1984 Corvette
- SFI Certified 6.1
- Height: 6.290'
- Transmission Bore: 4.685'
- Weight: 22 pounds
- Includes engine plate, pivot ball, and Grade 8 bolts
Note: For applications with stock shifter fork and throwout bearings. Shifter fork not included. Shifter fork opening positioned at 7 o'clock.
SFI Blowproof Safety
SFI-certified Quick Time Bellhousings for Chevy Engines feature high-grade spun steel castings that are heat-treated to 80,000 psi for lightweight and durable strength. Made to fit various GM transmission and aftermarket cases, these patented 16-point bellhousings maximize dimensional stability and reduce drivetrain, making them ideal for street, strip, and circle track applications.
