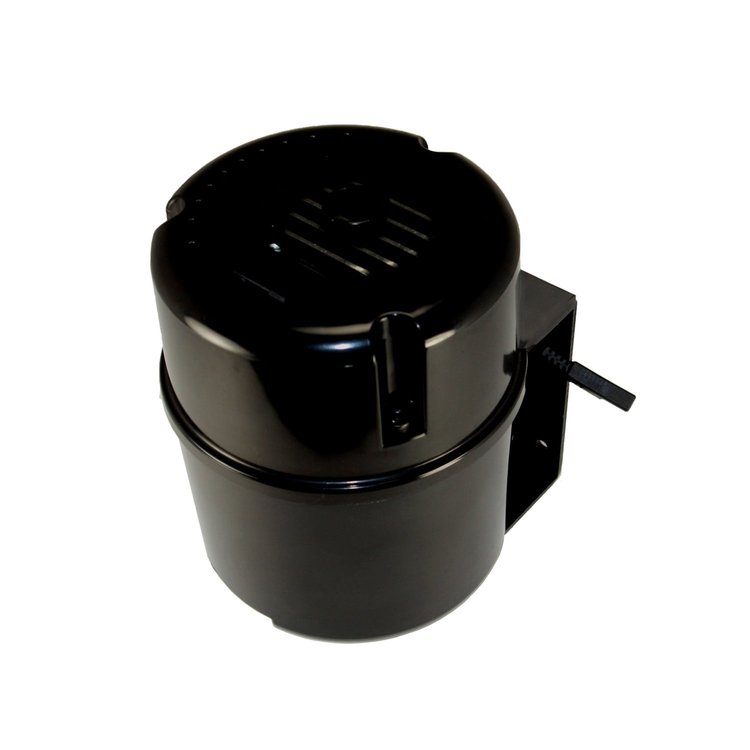

The LEED Brakes VP001B Bandit series vacuum pump in its black concealed canister provides an efficient, quiet & vibration free solution for your brake vacuum assist needs. The vacuum pump used in our kit is a Rotary Vane style pump and is 60% quieter than the noisy Piston Style pumps on the market today, making your Sunday drive more enjoyable. The Bandit series vacuum pump is also 30% more efficient, giving you the required vacuum in less time and will extend its life. The abs black plastic concealed canister keeps the vacuum pump clean and free of debris that can cause premature failure and provides a sleek, clean look. Each pump is pre-wired and tested on the assembly line to assure a trouble-free and easy installation. The Black Bandit offers an option to remove the pump assembly as one unit from the canister turning it into a Naked Bandit to be mounted in most tight spaces.

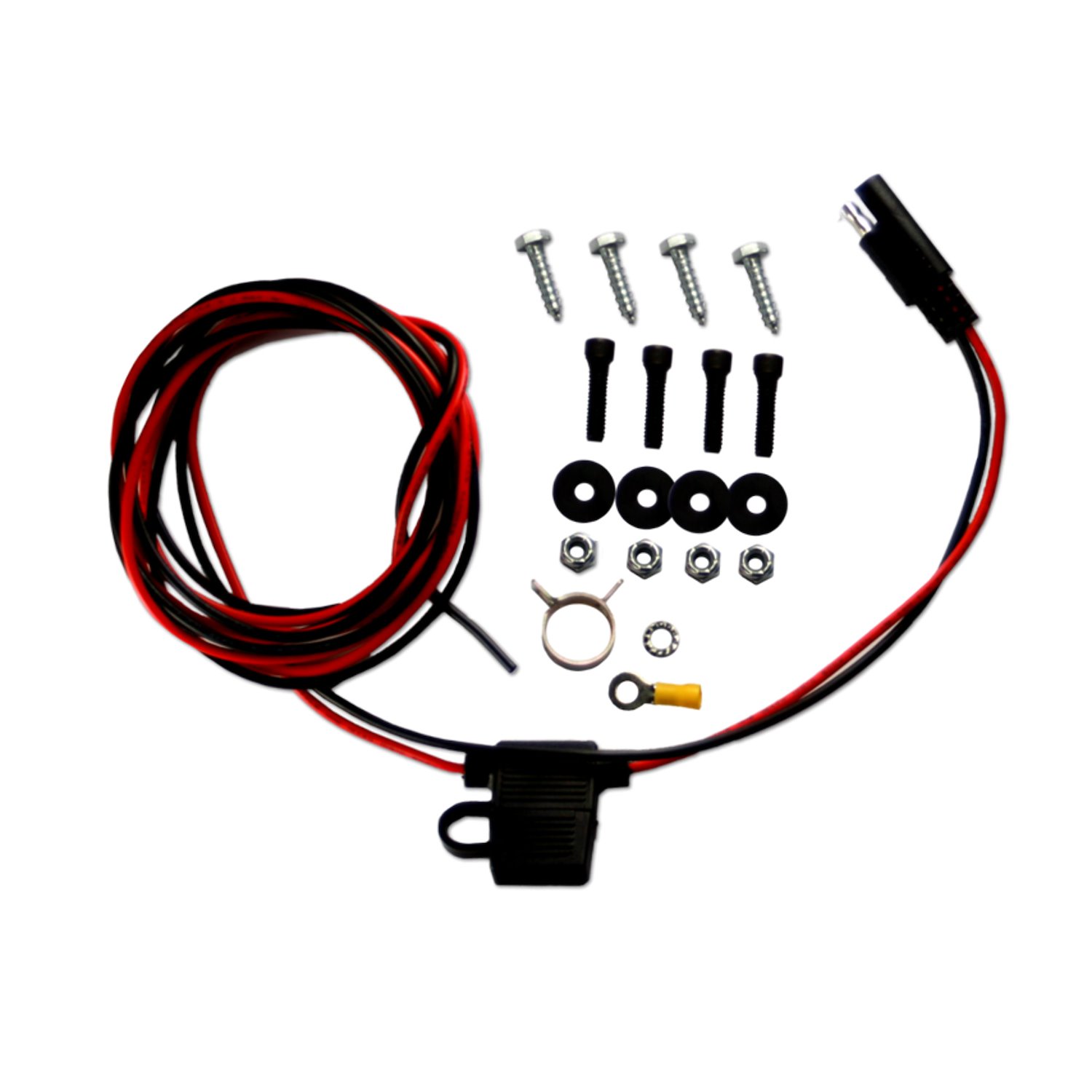

Includes:

• (1) Wiring Harness: 16 Gauge 2-wire x 6 ft. Long with Fuse Holder and 15A Fuse
• (1) Ring Terminal: 16 Gauge with 1/4 Eyelet
• (4) Self-Tapping Screws: #10 x 1 in. UHL and 5/16 in. Hex Head
• (4) Machine Screws: 1/4 in.-20 x 1 in. UHL and 3/16 in. Allen Head
• (4) Lock Nuts: 1/4 in.-20 with 7/16 in. Hex Head
• (4) Rubber Isolators: 3/4 in. O.D. x 1/4 in. I.D. x .080 in. Thick
• (1) Vacuum Hose: 11/16 in. O.D. x 3/8 in. I.D. x 6 ft. Long
• (1) Vacuum Hose Spring Clamp: Fits 11/16 in. O.D. Hose

Dimensions:

• Complete Canister Assembly:
  • 6 in. Diameter
  • 7 3/4 in. H
• Universal Mounting Plate:
  • 4 1/2 in. x 4 3/4 in.
• Internal Pump Assembly:
  • 5 in. Depth x 4 3/4 in. Width x 7 1/4 in. H
