![LW90-70754F HB45 Wheel [Size: 17"x7"] Gold Haze Finish](https://www.jegs.com/images/mini_750/100/123/123-lw90-70754f.jpg)
Vehicle Info NeededLEGENDARY WHEELSPART NUMBER: 123-LW90-70754F

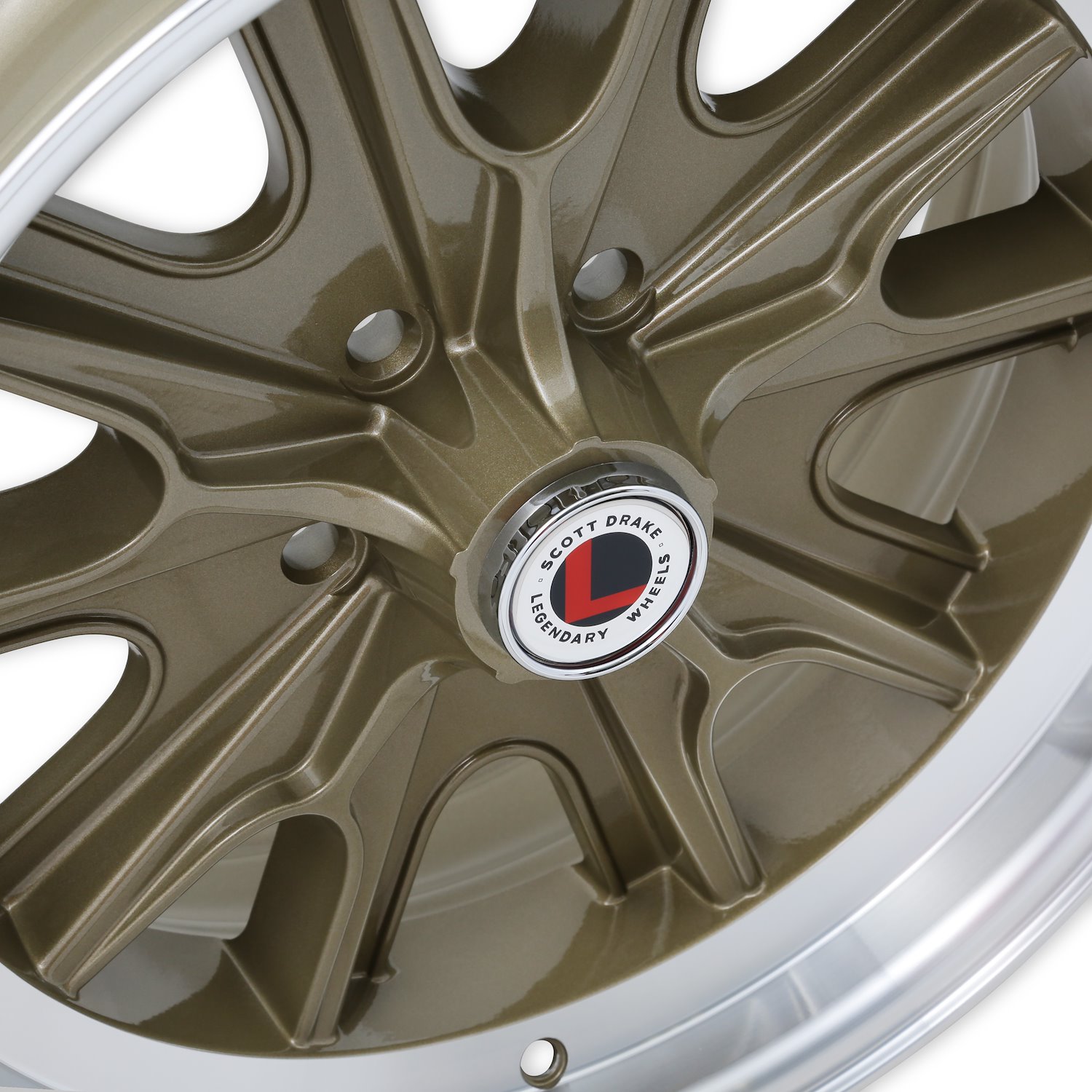

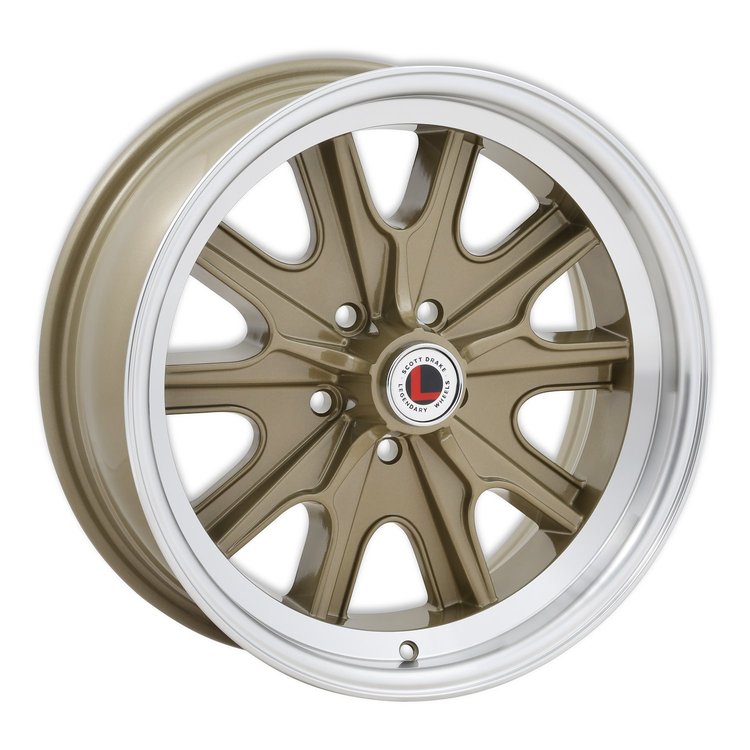

LW90-70754F HB45 Wheel [Size: 17"x7"] Gold Haze Finish
$27995$311.95You Save$32.00
Ships on 09/15/2026
Lowest Price Guarantee17 in. Diameter
HB45 WheelSize: 17"x7" Bolt Pattern: 5 x 4.50" Backspace: 4.25" Offset: 6.95 mm Hub Bore: 79.3 mm Finish: Gold Haze
Legendary Wheels LW90-70754F Features:
The HB Series / LW90 wheels are reminiscent of the vintage A/C Cobra. This rim, with the optional lug cover & screw-on spinner, makes it a timeless classic.
- Center Cap Included: Yes
- Material: Aluminum
- Note: The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e. axle swaps, disc brake / big brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires
Part TypeWheel
BrandLEGENDARY WHEELS
Package Height9.0
Package Width9.8
Package Length19.2
Weight21.55 PG
Part CategoryAccessories
Wheel Size17 x 7 in.
ColorGold Haze
Quantity1
Lug Nuts IncludedNo
Tpms CompatibleYes
Wheel FinishGold Haze
Wheel MaterialCast Aluminum
Back Spacing4.25 in.
Wheel ConstructionCast
Bolt Pattern5 x 4.5 in.
Offset6.95 mm
Backspacing4.25 in.
Lug Nut IncludedNo
Center Bore Diameter79.3 mm
Center Cap IncludedYes
Wheel Bolt Pattern5 x 4.5 in.
Wheel Diameter17 in.
Wheel Offset6.95 mm
Wheel TypeCar Street Wheels
Part FitmentUniversal
Wheel Width7 in.
Vendor Part NumberLW90-70754F
Package Qty1
Package TypeEA
