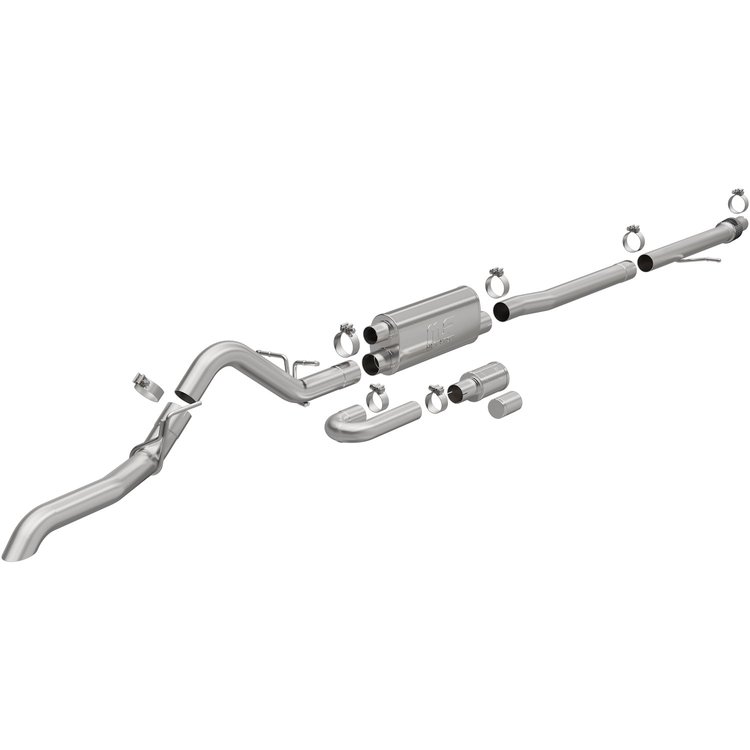

19636 Overland Series Cat-Back Performance Exhaust System Fits Select Ford Ranger
InfoVehicle Info Needed
MAGNAFLOWPART NUMBER: 642-19636

19636 Overland Series Cat-Back Performance Exhaust System Fits Select Ford Ranger

$1,11800
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Ford Ranger
Overland Series Cat-Back Performance Exhaust System
  • Fits Select Ford Ranger
  • Stainless Steel

    The MagnaFlow Ford Ranger Overland Series Cat-Back Performance Exhaust System #19636 is engineered for off-road function and built to explore further. This Ford Ranger exhaust system is designed for the 2024-2025 Ford Ranger equipped with the I4-2.3L engine option. The high clearance exhaust design of this kit is designed to keep your truck clear of any challenging terrain or obstacles you may come across. #19636 3” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit style. MagnaFlow NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted dr oning noises that can otherwise occur at highway cruising speeds. This truck exhaust kit can be tailored to your preferred exhaust tone by installing various exhaust modules that are integrated with the muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in diff erent configurations to mitigate a wide range of droning frequencies. Looking for a smoother, quieter ride on the trails? Simply connect the NDT module. Prefer a more aggressive signature sound? Install the pipe cap to cover the muffler accessory port. Exhaust kit #19636 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Ford Ranger cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFl ow’s limited lifetime warranty.

    Magnaflow 19636 Overland Series Cat-Back Performance Exhaust System Features:

    • No-Drone-Technology (NDT) allows for a quiet cabin
    • Dyno proven performance
    • High clearance exit
    • Powerful Bolt-On Exhaust!

      Magnaflow Ford, Lincoln, and Mazda Truck Exhaust Systems are designed to bolt right on and provide you with trouble-free performance. Each stainless steel exhaust system is made from mandrel-bent tubing for unrestricted horsepower and torque gains.

    Part TypeExhaust System
    Product LineMagnaflow Ford/Lincoln/Mazda Truck Exhaust Systems
    BrandMAGNAFLOW
    Package Height12.37
    Package Width15.5
    Package Length57.12
    Weight27.0 PG
    Part CategoryPerformance Parts
    Exhaust Tip Quantity0
    Muffler Body Width Position Passenger Side4 in.
    Valve IncludedNo
    Pipe MaterialStainless Steel
    Hangers IncludedYes
    Main Piping Diameter3 in.
    Muffler Body Length Position Passenger Side6 in.
    Inlet TypeClamp-On
    Mounting Bracket IncludedNo
    Muffler FinishBrushed
    Muffler Body Height Position Passenger Side4 in.
    Muffler Body Height Position Driver Side5 in.
    Exit StyleTurndown In Front Of Rear Tire
    Muffler Body MaterialStainless Steel
    Muffler Type Position Passenger SideTuned Chamber
    Clamping TypeBand Clamp
    Gasket Or Seal IncludedNo
    Muffler Body Width Position Driver Side8 in.
    Muffler Quantity2
    TypeCat-Back
    Muffler Type Position Driver SideStraight-Through
    Muffler Body Diameter Position Passenger Side4 in.
    Part FitmentDirect Fit
    Muffler Body Length Position Driver Side18 in.
    Vendor Part Number19636
    Package Qty1
    Package TypeEA
