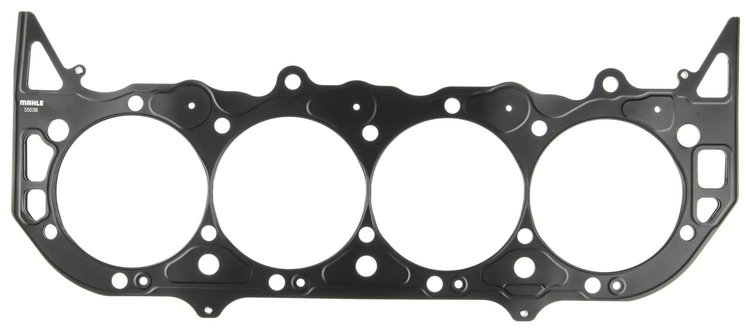

Cylinder Head Gasket for Big Block Chevy
InfoVehicle Info Needed
MAHLE PERFORMANCE GASKETSPART NUMBER: 696-55036

Cylinder Head Gasket for Big Block Chevy

$16499
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Rigid Chisel/Scraper 1-1/4" Wide Straight Blade

JEGS

Rigid Chisel/Scraper 1-1/4" Wide Straight Blade

Part Number : 555-80601
$899$9.99
You Save$1.00

Big Block Chevy
Cylinder Head Gasket
  • Big Block Chevy Mk IV
  • Bore: 4.630"
  • Volume: 11.1
  • Thickness: .040"
  • Material: Multi-Layered Steel (MLS)

    Mahle Performance Gaskets 55036 Features:

    MAHLE® gaskets provide world class sealing products trusted by OEMs & Technicians around the globe.
    • MAHLE Performance cylinder head gaskets are designed with the latest technology to seal and protect engines that push the limits of conventional gaskets. Cylinder head gaskets are available in your choice of multi-layered steel, solid core composite, and graphite materials.

      Multi-Layered Steel (MLS):

      • Comprised of multiple embossed layers of FKM (fluoroelastomer) coated and uncoated 301 stainless steel
      • Able to handle any application from naturally aspirated to boost or nitrous
      • Center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
      • No sealants or re-torque required
      Show More

      Solid Core Composite:

      • Made of PTFE coated non-asbestos facing material
      • Chemically bonded to a solid steel core
      • Solid steel core provides superior radial strength
      • Pre-flattened wire ring withstands higher cylinder pressures

      Graphite:

      • Stays cool at temperature up to 1800 degrees Farenhieght
      • Designed to seal minor surface irregularities
      • No re-torque required
      Part TypeHead Gasket
      Product LineMahle Performance Cylinder Head Gaskets
      BrandMAHLE PERFORMANCE GASKETS
      Package Height0.3
      Package Width12.0
      Package Length24.0
      Weight1.14 PG
      Part CategoryPerformance Parts
      Vendor Part Number55036
      Package Qty1
      Package TypeEA
