Vehicle Info NeededMAHLE PERFORMANCE GASKETSPART NUMBER: 696-55070

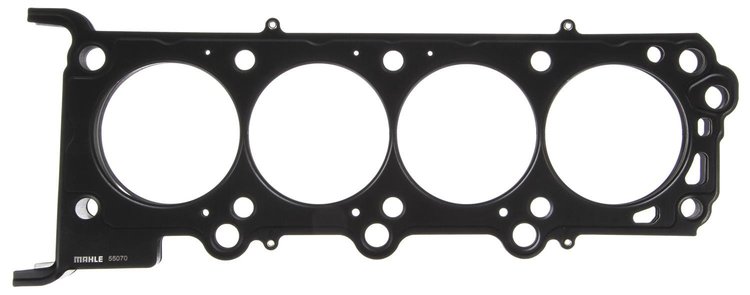

Cylinder Head Gasket for Ford Modular 5.4L
$14599
Ships on Sep 03, 2026
Lowest Price GuaranteeFord Modular
Cylinder Head Gasket2004-2014 Ford Modular 5.4L SOHC 3V Right Side Bore: 3.700" Volume: 5.4 Thickness: .030" Material: Multi-Layered Steel (MLS)
Mahle Performance Gaskets 55070 Features:
MAHLE® gaskets provide world class sealing products trusted by OEMs & Technicians around the globe.MAHLE Performance cylinder head gaskets are designed with the latest technology to seal and protect engines that push the limits of conventional gaskets. Cylinder head gaskets are available in your choice of multi-layered steel, solid core composite, and graphite materials.
Multi-Layered Steel (MLS):
- Comprised of multiple embossed layers of FKM (fluoroelastomer) coated and uncoated 301 stainless steel
- Able to handle any application from naturally aspirated to boost or nitrous
- Center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- No sealants or re-torque required
Show More
Solid Core Composite:
- Made of PTFE coated non-asbestos facing material
- Chemically bonded to a solid steel core
- Solid steel core provides superior radial strength
- Pre-flattened wire ring withstands higher cylinder pressures
Graphite:
- Stays cool at temperature up to 1800 degrees Farenhieght
- Designed to seal minor surface irregularities
- No re-torque required
Part TypeHead Gasket
Product LineMahle Performance Cylinder Head Gaskets
BrandMAHLE PERFORMANCE GASKETS
Part CategoryPerformance Parts
Vendor Part Number55070
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
ITEM YOU MAY ALSO CONSIDER
Some parts are not legal for use in California or other states with similar laws / regulations
