![5746 Cylinder Head Gasket for Small Block Chevy Engines [4.100 in. Bore]](https://www.jegs.com/images/mini_750/600/696/696-5746.jpg)
Vehicle Info NeededMAHLE PERFORMANCE GASKETSPART NUMBER: 696-5746

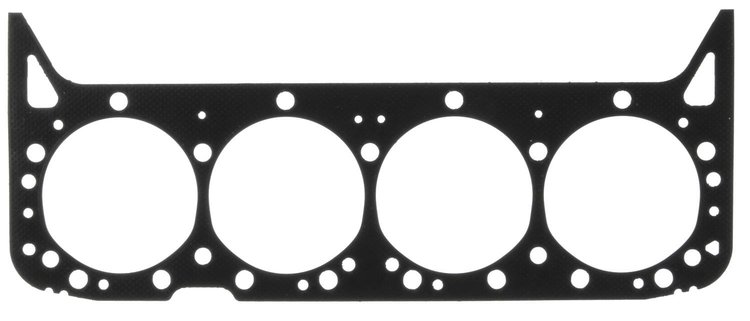

5746 Cylinder Head Gasket for Small Block Chevy Engines [4.100 in. Bore]
$1899
More than 10 available
Ships Today
Lowest Price GuaranteeSmall Block Chevy
Cylinder Head GasketSmall Block Chevy Material: Graphite Bore: 4.100 in. Compressed Thickness: .040 in. Compressed Volume: 5.4 cc Lock Wire: No Sold Individually
Mahle Performance Gaskets 5746 Features:
MAHLE® gaskets provide world class sealing products trusted by OEMs & Technicians around the globe.MAHLE Performance cylinder head gaskets are designed with the latest technology to seal and protect engines that push the limits of conventional gaskets. Cylinder head gaskets are available in your choice of multi-layered steel, solid core composite, and graphite materials.
Multi-Layered Steel (MLS):
- Comprised of multiple embossed layers of FKM (fluoroelastomer) coated and uncoated 301 stainless steel
- Able to handle any application from naturally aspirated to boost or nitrous
- Center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
- No sealants or re-torque required
Show More
Solid Core Composite:
- Made of PTFE coated non-asbestos facing material
- Chemically bonded to a solid steel core
- Solid steel core provides superior radial strength
- Pre-flattened wire ring withstands higher cylinder pressures
Graphite:
- Stays cool at temperature up to 1800 degrees Farenhieght
- Designed to seal minor surface irregularities
- No re-torque required
Part TypeHead Gasket
Product LineMahle Performance Cylinder Head Gaskets
BrandMAHLE PERFORMANCE GASKETS
Package Height0.2
Package Width8.7
Package Length24.0
Weight0.51 PG
Part CategoryPerformance Parts
Thickness.040 in.
Cylinder Bore Diameter4.100 in.
MaterialGraphite
Part FitmentDirect Fit
Grade TypePerformance
Vendor Part Number5746
Package Qty1
Package TypeEA
