Made in USA

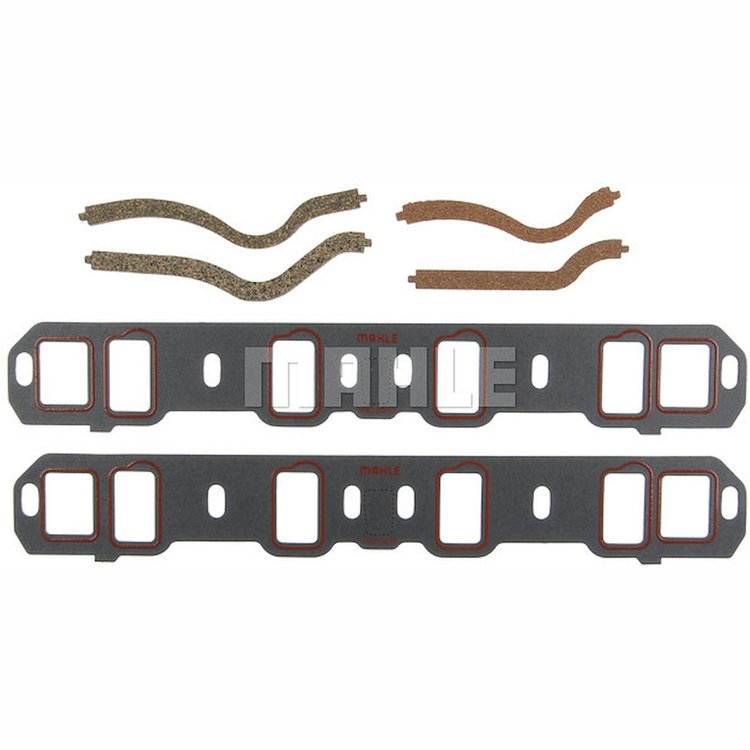

Intake Manifold Gasket Set for Small Block Ford
InfoVehicle Info Needed
MAHLE PERFORMANCE GASKETSPART NUMBER: 696-MS20069

Intake Manifold Gasket Set for Small Block Ford

$5499
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Ford
Performance Intake Manifold Gasket Set
  • Small Block Ford V8 289-351W
  • Fits Stock/Small Race Port
  • Port Size: 1.100" x 2.000"
  • Thickness: .060"
  • Material: Steel Core Laminated Fiber
  • Silicone Bead Sealed

    Mahle Performance Gaskets MS20069 Features:

    MAHLE® gaskets provide world class sealing products trusted by OEMs & Technicians around the globe.
      • MAHLE Performance intake manifold gaskets use quality materials with the latest technology to seal and protect engines designed to push the limits of conventional gaskets. These performance intake gaskets were designed to be trimmed for an exact fit on stock or modified ports. The base fiber material is offered with or without a steel core and resists coolant, gasoline, alcohol, and oil. Silicon bead sealed ports provide the sealing strength needed around port openings and eliminate leak paths.  MAHLE uses innovative designs to provide durable and reliable intake gaskets for marine, performance street, and racing applications.

        Show More

        Features:

        • Easy trimming to match modified port shapes
        • Conformable fiber faced material with a double-perforated steel core
        • Silicone bead sealed ports maintain seal under high vacuum applications and long exposure to fuel and oil
        • Proven port shapes for both factory performance and aftermarket racing heads
        • Base fiber material offered with or without steel core that is resistant to coolant, gasoline, alcohol, and oil
        • Available thickness of  .030" to .120" to compensate for surface variations
      Part TypeIntake Manifold Gasket
      Product LineMahle Performance Intake Manifold Gaskets
      BrandMAHLE PERFORMANCE GASKETS
      Package Height0.25
      Package Width6.0
      Package Length24.0
      Weight0.5 PG
      Part CategoryPerformance Parts
      Vendor Part NumberMS20069
      Package Qty1
      Package TypeEA
