Vehicle Info NeededMANLEYPART NUMBER: 660-221424-1

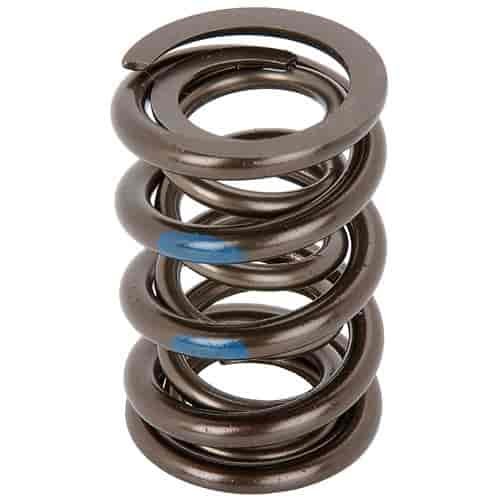

NexTek Drag Race Valve Spring 1.640" O.D.
$2330
Ships on 09/08/2026
Lowest Price Guarantee1.640'' O.D. Double Valve Springs
- NexTek Drag Race Valve Spring
- 1.640'' O.D.
- 0.860'' I.D.
- 647 lbs./in. Spring Rate
- 250 @ 2.000'' Installed
- 800 @ 1.150'' Open
- 0.880'' Max Valve Lift
- 1.070'' Coil Bind
- Double Spring (No Damper)
- 1/pkg.
- Type of Spring: Double without Damper
- Color Code: Blue Stripe
- Installed Height and Pressure: 2.000' @ 250 lbs./in.
- Open Height and Pressure: 1.150' @ 800 lbs./in.
- Spring Rate: 647 lbs./in.
- O.D. of Outer Spring: 1.640'
- I.D. of Outer Spring: 1.185'
- I.D. of Middle Spring: N/A
- I.D. of Inner Spring: 0.860'
- Coil Bind height: 1.070'
- Weight: 149 grams
- Damper Included: No
Click Here to see 660-221424 Valve Spring Load Chart
Part TypeValve Spring
BrandMANLEY
Package Height2.8
Package Width2.9
Package Length3.7
Weight0.35 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number221424-1
Package Qty1
Package TypeEA
