Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

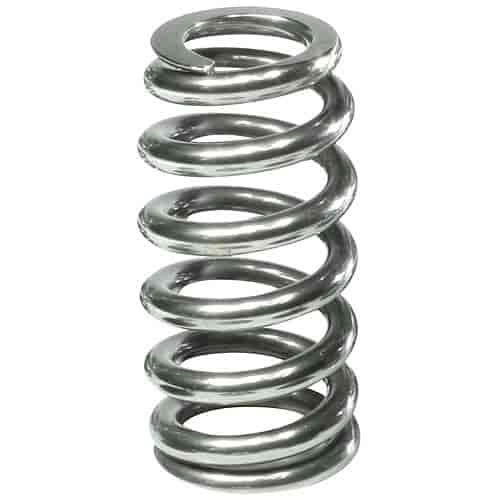

Ford 4.6L/5.4L
- NexTek H.P. Valve Spring
- 4.6/5.4L SOHC 3V
- 1.101'' O.D.
- 0.650'' I.D.
- 258 lbs./in. Spring Rate
- 110 @ 1.670'' Installed
- 260 @ 1.090'' Open
- 0.580'' Max Valve Lift
- 1.020'' Coil Bind
- Single Conical Ovate Wire
- 1/pkg.
Ford 4.6L, 5.4L SOHC 3-Valve stock diameter hydraulic roller applications.
- Type of Spring: Super Finish Single Conical Ovate Wire
- Color Code: N/A
- Installed Height and Pressure: 1.670' @ 110 lbs./in.
- Open Height and Pressure: 1.090' @ 260 lbs./in.
- Spring Rate: 258 lbs./in.
- O.D. of Outer Spring: 1.013' Top / 1.101' Bottom
- I.D. of Outer Spring: 0.650' Top / 0.738' Bottom
- I.D. of Middle Spring: N/A
- I.D. of Inner Spring: N/A
- Coil Bind height: 1.020'
- Weight: 49 grams
- Damper Included: No
Click Here to see 660-221433 Valve Spring Load Chart
Part TypeValve Spring
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number221433-1
Package Qty1
Package TypeEA
