Vehicle Info NeededMANLEYPART NUMBER: 660-221460-1

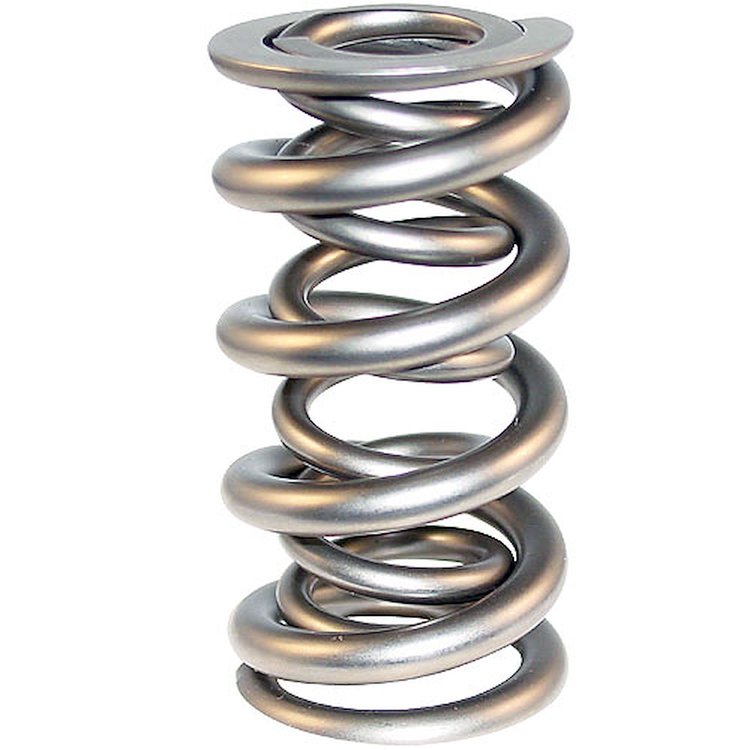

NexTek Lightweight Dual Drag Race Valve Spring 1.522" O.D.
$6248
Ships Tomorrow
Lowest Price Guarantee1.522'' O.D. Valve Springs
- NexTek Lightweight Dual Drag Race Valve Spring
- 1.522'' O.D.
- 0.710'' I.D.
- 948 lbs./in. Spring Rate
- 440 @ 2.250'' Installed
- 1340 @ 1.300'' Open
- 0.950'' Max Valve Lift
- 1.255'' Coil Bind
- Double Spring (No Damper)
- 1/pkg.
- Type of Spring: Double without Damper
- Color Code: Super Finished
- Installed Height and Pressure: 2.250' @ 440 lbs./in.
- Open Height and Pressure: 1.300' @ 1340 lbs./in.
- Spring Rate: 948 lbs./in.
- O.D. of Outer Spring: 1.522'
- I.D. of Outer Spring: 1.050'
- I.D. of Middle Spring: N/A
- I.D. of Inner Spring: 0.710'
- Coil Bind height: 1.255'
- Weight: 154 grams
- Damper Included: No
Click Here to see 660-221460 Valve Spring Load Chart
Part TypeValve Spring
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number221460-1
Package Qty1
Package TypeEA
