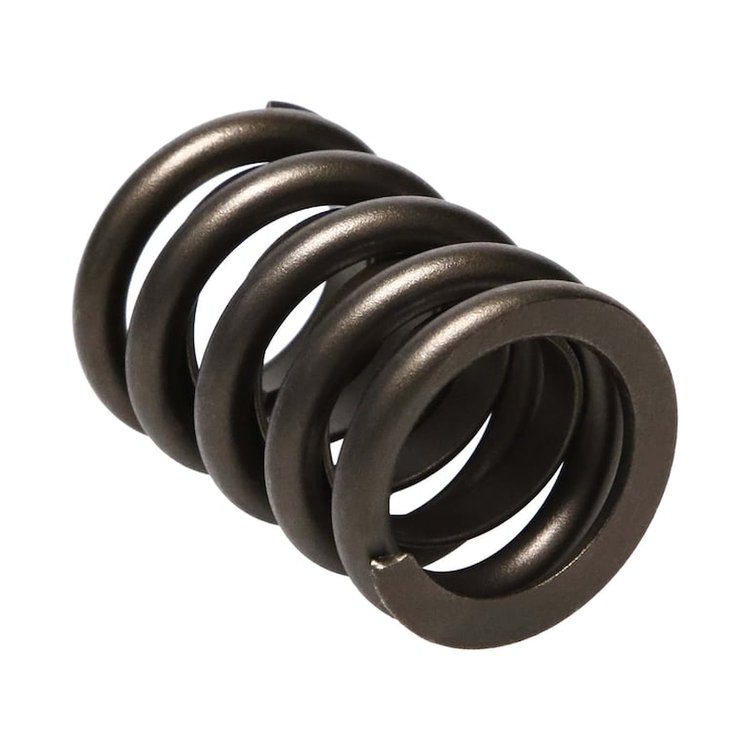

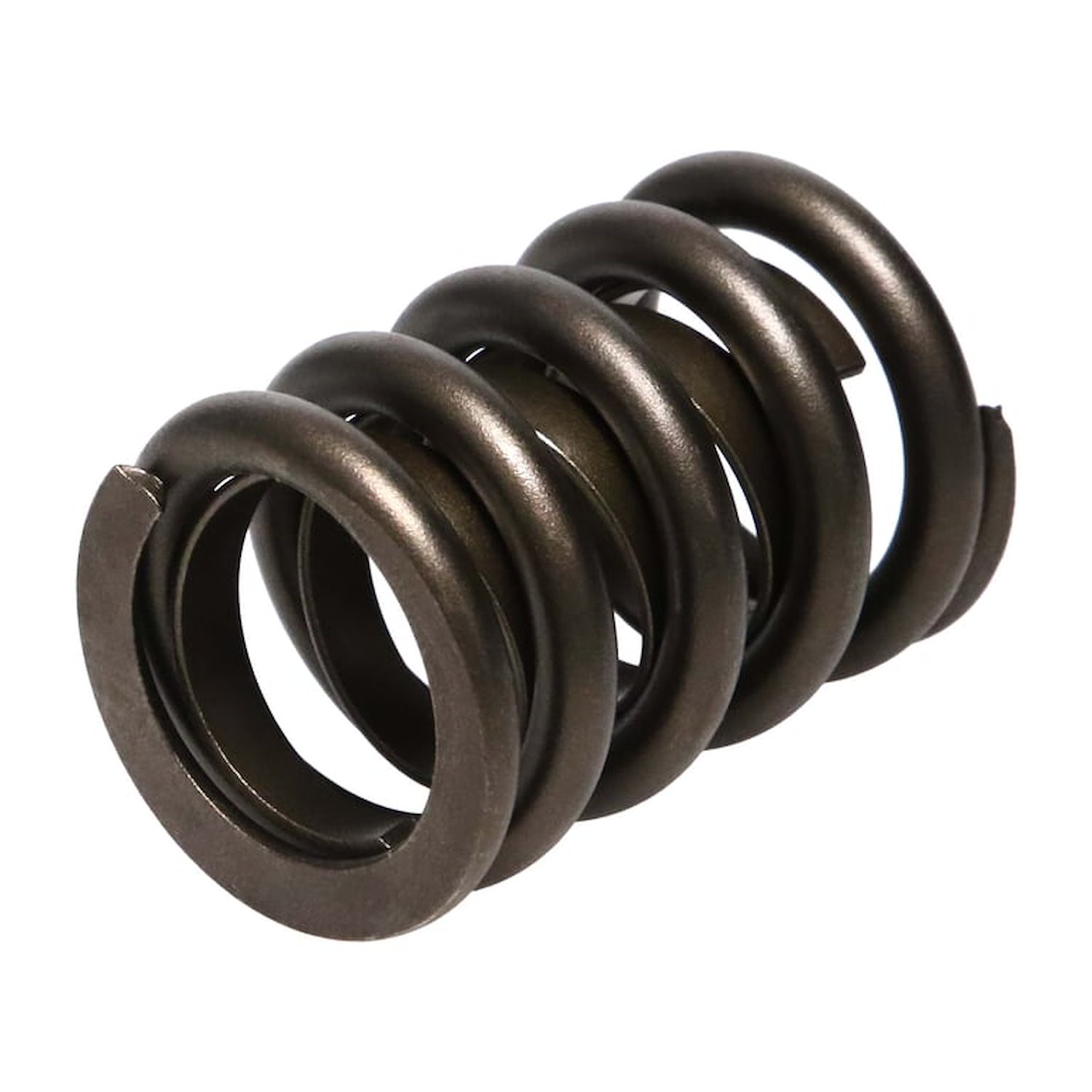

Street Master Valve Springs 1.550" O.D.
InfoVehicle Info Needed
MANLEYPART NUMBER: 660-22406-16

Street Master Valve Springs 1.550" O.D.

$17101
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Digital Mini Valve Spring Tester 0-700 x 2 lb. Increments

PROFORM

Digital Mini Valve Spring Tester 0-700 x 2 lb. Increments

Part Number : 778-66836
$17999
Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80518
$919$9.99
You Save$0.80
Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80521
$5299$58.99
You Save$6.00
Valve Spring Micrometer [1.400 in. - 1.800 in. Height Range]

JEGS

Valve Spring Micrometer [1.400 in. - 1.800 in. Height Range]

Part Number : 555-80535
$4199$46.99
You Save$5.00

1.550'' O.D. Single Valve Springs
    Street Master Valve Springs
  • 1.550'' O.D.
  • 1.080'' I.D.
  • 460 lbs./in. Spring Rate
  • 125 @ 1.875'' Installed
  • 355 @ 1.375'' Open
  • 1.190'' Coil Bind
  • Single Spring with Damper
  • 16/pkg.

  • Type of Spring: Single Coil with Damper
  • Installed Height and Pressure: 1.875' @ 125 lbs./in.
  • Open Height and Pressure: 1.375' @ 355 lbs./in.
  • Spring Rate: 460 lbs./in.
  • O.D. of Outer Spring: 1.550'
  • I.D. of Outer Spring: 1.080'
  • I.D. of Inner Spring: N/A
  • Coil Bind height: 1.190'
  • Weight: 121 grams
  • Damper Included: Yes

    Click Here to see 660-22406 Valve Spring Load Chart

Manley Street Master Valve Springs are constructed from a chrome silicon material to meet your performance needs. Designed for low stress and long service life.

Features:

  • Chrome silicon material
  • Designed for low stress and long service life
  • Proprietary multistep heat treating minimizes load loss
  • Tightly controlled open end flatness reduces valve stem side loading
  • Tip thickness designed to eliminate overload breakage

Click Here to see Valve Springs Load Chart

Part TypeValve Spring Retainer
Product LineManley Street Master Valve Springs
BrandMANLEY
Package Height2.7
Package Width6.3
Package Length6.3
Weight4.25 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number22406-16
Package Qty1
Package TypeEA
No Questions
No Reviews
