Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

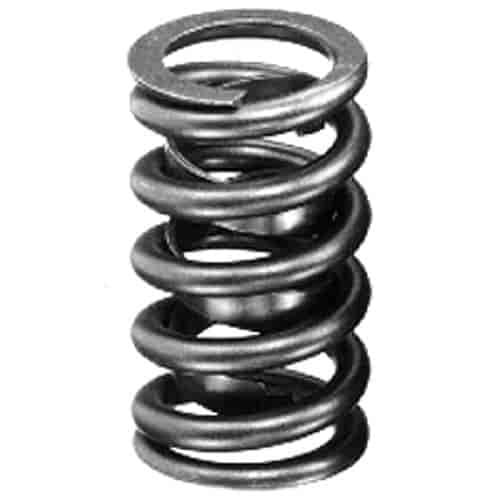

1.250'' O.D. Single Valve Springs
- Street Master Valve Spring
- 1.250'' O.D.
- 0.865'' I.D.
- 357 lbs./in. Spring Rate
- 110 @ 1.700'' Installed
- 285 @ 1.210'' Open
- 1.180'' Coil Bind
- Single Spring with Damper
- 1/pkg.
- Type of Spring: Single Coil with Damper
- Installed Height and Pressure: 1.700' @ 110 lbs./in.
- Open Height and Pressure: 1.210' @ 285 lbs./in.
- Spring Rate: 357 lbs./in.
- O.D. of Outer Spring: 1.250'
- I.D. of Outer Spring: 0.865'
- I.D. of Inner Spring: N/A
- Coil Bind height: 1.180'
- Weight: 87 grams
- Damper Included: Yes
Click Here to see 660-22409 Valve Spring Load Chart
Manley Street Master Valve Springs are constructed from a chrome silicon material to meet your performance needs. Designed for low stress and long service life.
Features:
- Chrome silicon material
- Designed for low stress and long service life
- Proprietary multistep heat treating minimizes load loss
- Tightly controlled open end flatness reduces valve stem side loading
- Tip thickness designed to eliminate overload breakage
Click Here to see Valve Springs Load Chart
Part TypeValve Spring Retainer
Product LineManley Street Master Valve Springs
BrandMANLEY
Package Height1.2
Package Width2.4
Package Length5.1
Weight0.25 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number22409-1
Package Qty1
Package TypeEA
