Vehicle Info NeededMANLEYPART NUMBER: 660-22431-16

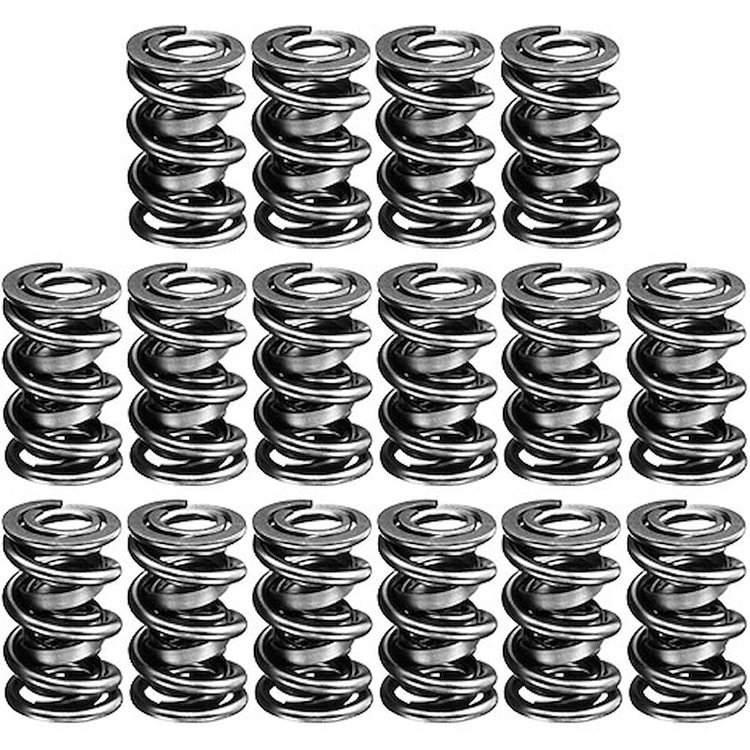

Professional Series Valve Springs 1.550" O.D.
$21556
More than 10 available
Ships Today
Lowest Price Guarantee1.550'' O.D. Double Valve Springs
- Professional Series Valve Springs
- 1.550'' O.D.
- 0.725'' I.D.
- 507 lbs./in. Spring Rate
- 225 @ 1.950'' Installed
- 580 @ 1.250'' Open
- 1.190'' Coil Bind
- Double Spring with Damper
- 16/pkg.
- Type of Spring: Double Coil with Damper
- Installed Height and Pressure: 1.950' @ 225 lbs./in.
- Open Height and Pressure: 1.250' @ 580 lbs./in.
- Spring Rate: 507 lbs./in.
- O.D. of Outer Spring: 1.550'
- I.D. of Outer Spring: 1.115'
- I.D. of Inner Spring: 0.725'
- Coil Bind height: 1.190'
- Weight: 159 grams
- Damper Included: Yes
Click Here to see 660-22431 Valve Spring Load Chart
Part TypeValve Spring
BrandMANLEY
Package Height3.8
Package Width3.9
Package Length15.5
Weight6.05 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number22431-16
Package Qty1
Package TypeEA
