Small Block Chevy Rotating Assembly 434ci

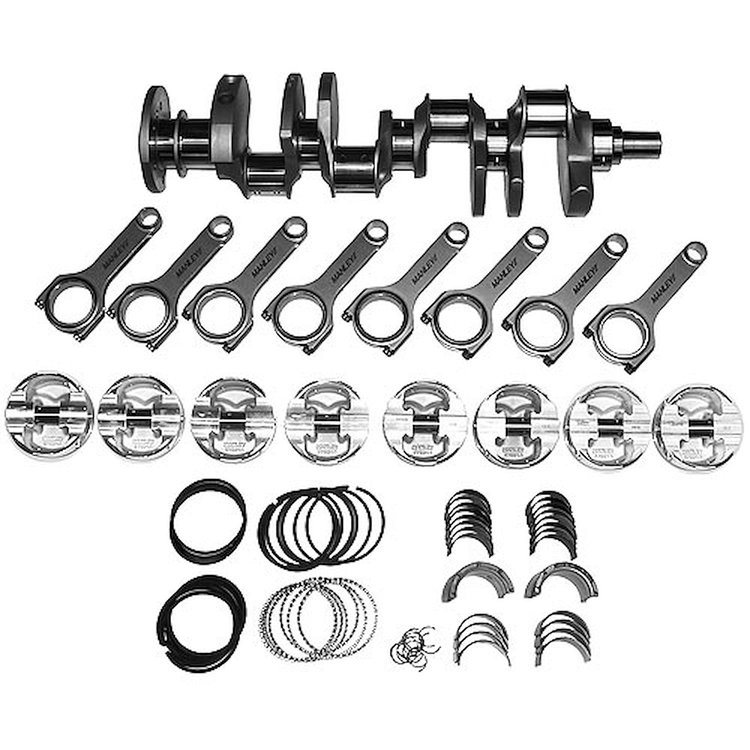

Name: Small Block Chevy Rotating Assembly 434ci
Brand: MANLEY
SKU: 660-290330
Price: 3019.45 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

434ci Assemblies

+4cc Dome Top Pistons

H-Beam Series Connecting Rods

434ci
4.155'' Bore (+.030'')
4.000'' Stroke
6.000'' Rod Length, H-Beam Connecting Rods
Dome Top +4cc
14.7:1 w/58cc
13.5:1 w/64cc
11.7:1 w/76cc
.043'', .043'', 3MM Piston Rings (Gas Ported)

Designed for use with a 400 engine block and 350 main journal diameters.
Technical Specs:
Compression Height: 1.000'
Compression Ratio: 14.7:1 w/ 58cc Combustion Chamber; 13.5:1 w/ 64cc Combustion Chamber; 11.7:1 w/ 76cc Combustion Chamber & 4.000' Stroke
Piston & Pin Weight: 557 grams
Dome Top: 4.0cc
Pin Size: 0.927' dia., 2.450' long, .150' wall
Round Wire Locks: .061'
Ring Grooves: Gas Ported .043' Top; .043' Middle; 3mm Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: .310' Intake, .200' Exhaust

Components included in this rotating assembly
SB-Chevy Crankshaft - 2-Piece Rear Seal (p/n 660-190130)
SB-Chevy H-Beam Connecting Rods (p/n 660-14054-8)
4.125-Inch Bore Dish Top Pistons (p/n 660-593830-8)
