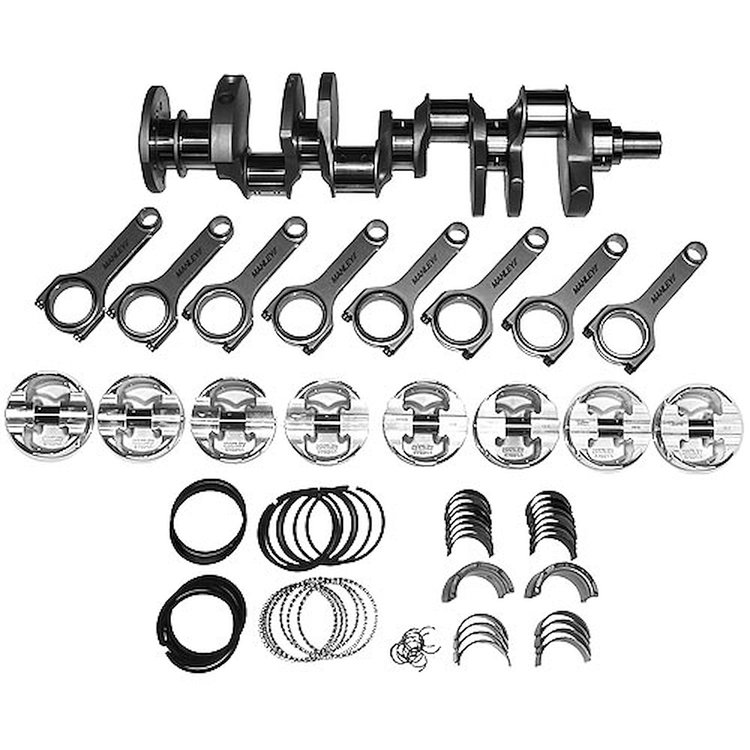

Small Block Chevy Rotating Assembly 383ci

Name: Small Block Chevy Rotating Assembly 383ci
Brand: MANLEY
SKU: 660-290940
Price: 2971.40 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

383ci Assemblies

+11cc Dome Top Pistons

H-Beam Series Connecting Rods

383ci
4.040'' Bore (+.040'')
3.750'' Stroke
6.000'' Rod Length, H-Beam Connecting Rods
Dome Top 11cc
14.9:1 w/58cc
13.5:1 w/64cc
11.5:1 w/76cc
.043'', .043'', 3MM Piston Rings (Gas Ported)

Designed for use with a 350 engine block and 350 main journal diameters.
Piston Technical Specs:
Compression Height: 1.125'
Compression Ratio: 14.9:1 w/ 58cc, 13.5:1 w/ 64cc, 11.5:1 w/ 76cc Combustion Chamber
Piston & Pin Weight: 584 grams
Dome Top: 11.0cc symmetrical design
Pin Size: 0.927' dia., 2.300' long, .150' wall
Round Wire Locks: .061'
Ring Grooves: Gas Ported .043' Top; .043' Middle; 3mm Bottom
Piston Clearance: .005' measured 1.100' from bottom of the oil ring
Valve Notches: Two Intake Notches, .275' deep

Components included in this rotating assembly
SB-Chevy Crankshaft - 2-Piece Rear Seal (p/n 660-190150)
SB-Chevy H-Beam Connecting Rods (p/n 660-14054-8)
Small Block Chevy 4-Inch Bore Dome Top Pistons (p/n 660-591440-8)
