Vehicle Info NeededMARCH PERFORMANCEPART NUMBER: 655-22038-08

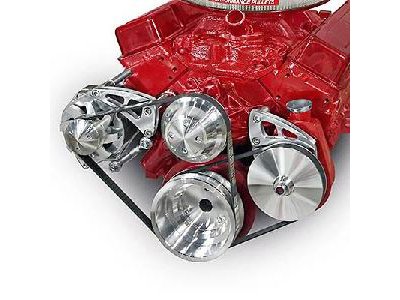

Mid Mount Serpentine Conversion Kit SB-Chevy - Long Water Pump
$57995
Ships on 09/04/2026
Lowest Price GuaranteeMid-Mount Design Kit
Ultra Series
Performance Ratio PulleysMid-Mount Alternator - Passenger side Mid-Mount Power Steering - Driver Side
Ultra Series
Performance Ratio Pulleys
- Mid Mount Serpentine Conversion Kit
- SB-Chevy - Long Water Pump
- Ultra Series
- Performance Ratio
- Drives Alternator, Water Pump & Saginaw Metric Power Steering Pump
- Black Finish
Ultra Series Kit Includes: - Crankshaft pulley
- Water pump pulley with nose cover
- Alternator bracket, pulley with alternator fan and nose cover
- Power steering kit includes pulley and pump brackets
- Stainless steel tensioning rod with chrome moly rod ends
- Superior grade-8 mounting hardware
Kit drives: Alternator
GM 6-12 o'clock mount 7" dia. alternatorYes A/C
Sanden 505 or 508 serpentine compressor- Water Pump
Long water pump - Standard rotationYes Saginaw Keyway Power Steering Pump
1966-74 keyway Saginaw pump with canister- Saginaw Press Fit Power Steering Pump
1975-78 press fit Saginaw pump with canister- Saginaw Metric Power Steering Pump
1978-87 press fit Saginaw metric pumpYes Alternator Belt Size
Dayco 6-rib belt42.5" Power Steering Belt Size
Dayco 5-rib belt33.5 - Uses Gates alternator belt #465-K060420
- Uses Gates power steering belt #465-K050330
High-Performance Engine Drive Systems
March Performance Serpentine Conversion kits replace your low-performance V-belts, pulleys, brackets and eliminate any issues with belt throwing. Simple to bolt-on, these kits retain your standard rotation water pump. Standard and mid-mount kits locate your accessories close to the engine center and in front of the cylinder heads, ideal for narrow engine compartments. Precision CNC-machined solid billet 6061-T6 aluminum components fit perfectly and handle high torque and vibration. Available in three series to suit space and budget requirements.
Show More
- Ultra Series is the top-of-the-line kit with all necessary pulleys, alternator fan, mounting brackets, and hardware
- Deluxe Series is ideal for cars with a minimal engine to radiator clearance. This kit includes everything available in the Ultra Series except for most pulley nose covers and alternator fan
- Custom Series is a low-cost system that gives up nothing in performance. Same as the Deluxe Series kit but with a protective silver powder-coat finish
Part TypeAccessory Drive Belt Kit
Product LineMarch Chevy Small Block Standard & Mid-Mount Serpentine Kits
BrandMARCH PERFORMANCE
Package Width12.4
Weight12.4 PG
Part CategoryPerformance Parts
Vendor Part Number22038-08
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
