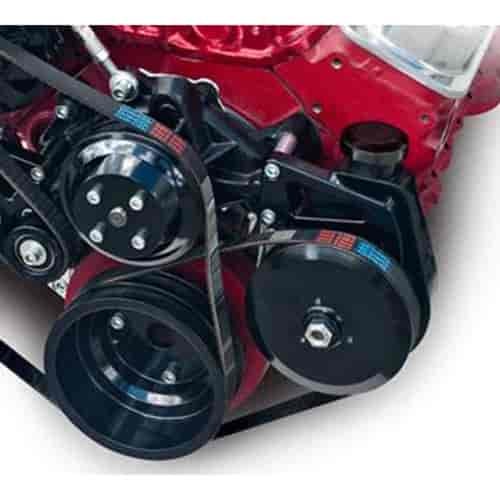

Vehicle Info NeededMid Mount Serpentine Conversion Kit SB-Chevy - Long Water Pump
Ships on 09/04/2026
Lowest Price GuaranteeUltra Series
High Water Flow Ratio Pulleys
- Mid Mount Serpentine Conversion Kit
- SB-Chevy - Long Water Pump
- Ultra Series
- High Water Flow Ratio
- Drives Alternator, Water Pump & Saginaw Keyway-style Power Steering Pump
- Black Finish
Ultra Series Kit Includes: - Crankshaft pulley
- Water pump pulley with nose cover
- Alternator bracket, pulley with alternator fan and nose cover
- Power steering kit includes pulley and pump brackets
- Stainless steel tensioning rod with chrome moly rod ends
- Superior grade-8 mounting hardware
Kit drives: Alternator
GM 6-12 o'clock mount 6" or 7" dia. alternatorYes A/C
Sanden 505 or 508 serpentine compressor- Water Pump
Long water pump - Standard rotationYes Saginaw Keyway Power Steering Pump
1966-74 keyway Saginaw pump with canisterYes Saginaw Press Fit Power Steering Pump
1975-78 press fit Saginaw pump with canister- Saginaw Metric Power Steering Pump
1978-87 press fit Saginaw metric pump- Alternator Belt Size
Dayco 6-rib belt42.5" Power Steering Belt Size
Dayco 6-rib belt35" - Uses Gates alternator belt #465-K060420
- Uses Gates power steering belt #465-K060345
Long Water Pump/Standard Rotation
Replace your low performance v-belts, pulleys and brackets with this compact Mid Mount kit that places your alternator and power steering pump below the center line of the water pump. Simple to bolt on, while retaining your standard rotation water pump. Serpentine belts eliminate belt slipage and throwing. Kits are available in High Water Flow ratio for increased cooling. CNC machined from solid billet 6061-T6 aluminum. This translates into a spectacular looking new machine finish with perfect fit and extra high strength. All of these billet pulleys and brackets have a ''No Polishing'' maintenance-free clear powdercoating. Kits come complete with stainless steel tensioning rod, chrome-moly rod ends and necessary mounting hardware.
Show More
Application:
These kits fit most mid and full size cars from the early 1950's and newer. Kit also fits 1969 and later Camaros and Novas. Other cars check water pump nose to radiator clearance. Long water pump kits extend out 8.5'' from the engine block with nose cover in place, plus clearance for mechanical or electric fans. Long water pump kits work with front motor mounts.
Kits Include:
- Crank Pulley
- Water Pump Pulley with Nose Cover
- Alternator Bracket with Relocation Arm and Adjustment Rod
- Alternator Pulley with Alternator Fan and Nose Cover
- Superior Grade 8 Mounting Hardware
Power Steering Kits Add:
- Power Steering Brackets and Pulley
- Keyway, Press Fit, or Press Fit Metric Pump A/C Kits Add:
- A/C Bracket, Idler and A/C Clutch Cover
