High Water Flow Ultra Serpentine Drive Kit 1965-69 Ford 289-302
InfoVehicle Info Needed
MARCH PERFORMANCEPART NUMBER: 655-30160-08

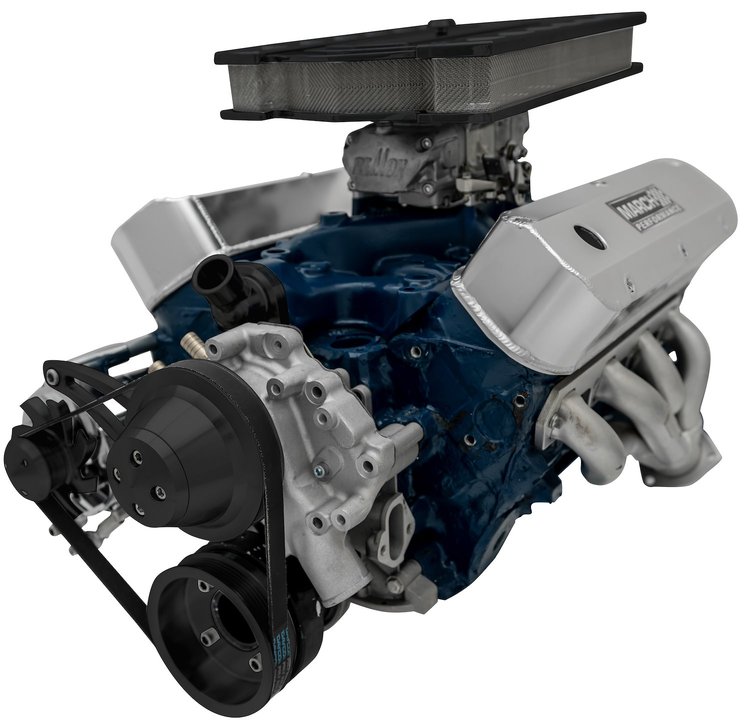

High Water Flow Ultra Serpentine Drive Kit 1965-69 Ford 289-302

$49500
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

1965-69 Ford 289-302
  • 3-Bolt Dampener
  • Passenger Side Lower Radiator Hose
  • Standard Rotation Water Pump
    • High Water Flow Ultra Serpentine Drive Kit
    • 1965-69 Ford 289-302
    • Black Finish


      AlternatorA/CWater PumpPower SteeringAlternator
      Belt Size
      A/C
      Belt Size

      P/S
      Belt Size

      Yes - Yes - 38'

    • Uses Gates alternator belt #465-K060374

    March Ford 289-302, 351W Ultra Serpentine Drive Kits replace your low performance V-belts, pulleys, and brackets and eliminate any issues with belt throwing. This drive kit comes complete with stainless steel tensioning rods and chrome moly rod ends for high performance operation. All necessary hardware included. The "Ultra" kits feature sculpted Futura mounting brackets that are precision CNC-machined from solid billet 6061-T6 aluminum to fit perfectly as well as handle high torque and vibration.

    Show More

    The high tensile strength of the material combined with the hard coating on all high wear areas means a much longer duty life than common cast pulleys with no chance of any type of fracturing or structural failure. All pulleys and brackets have a "No Polishing" maintenance-free clear powdercoating. An adjustable stainless steel tensioning rod with chrome-moly rod ends and mounting hardware is also included. There are two pulley ratios available; Performance to increase horsepower by reducing accessory drag, with typical gains of 12-15 horsepower at the rear wheels and High Water Flow to increase cooling by speeding up water flow and fan speed, critical for low speed driving where most overheating occurs.

    Kits Include:

    • Alternator Bracket
    • Tensioners and Hardware
    • Crank Pulley
    • Water Pump Pulley with Nose Cover
    • Alternator Pulley with Fan and Nose Cover
    • Grade 8 Mounting Hardware Power Steering Kits Add:
    • Power Steering Bracket and Pulley A/C Kits Add:
    • A/C Bracket, Hardware and Nose Cover Kits Require:
    • Electric Fuel Pump for 289-302 Power Steering Applications
    • March 655-P560 Ford Alternator or 6-12 O'clock Mounting
    • Standard Rotation Water Pump
    • Power Steering Kits Require 1971-76 Mustang Power Steering Pump, 655-P330, or 655-9670
    • A/C Kits Require Sanden 505 or 508 Serpentine A/C
    Part TypeSerpentine Belt System
    Product LineMarch Ford 289-302, 351W Ultra Serpentine Drive Kits
    BrandMARCH PERFORMANCE
    Package Height9.3
    Package Width11.7
    Package Length17.2
    Weight8.72 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Idler Brackets IncludedNo
    Idler/Tensioner IncludedNo
    Air Conditioning Bracket IncludedNo
    Crankshaft Pulley Grooves6-groove, serpentine
    Alternator Pulley IncludedYes
    Alternator Nose Cover IncludedYes
    Water Pump Pulley Grooves6-groove, serpentine
    Bracket MaterialBillet aluminum
    Pulley Set StylePerformance ratio
    Crankshaft Nose Cover IncludedNo
    Water Pump Pulley IncludedYes
    Alternator Brackets IncludedYes
    Pulley StyleSerpentine Pulley
    Pulley FinishBlack powdercoated
    Crankshaft Pulley IncludedYes
    QuantitySold as a kit
    Power Steering Brackets IncludedNo
    Alternator Pulley Grooves6-groove, serpentine
    Air Conditioning Cover IncludedNo
    Air Conditioning Pulley IncludedNo
    Power Steering Pulley IncludedNo
    Alternator Fan IncludedYes
    Idler Cover IncludedNo
    Part FitmentSemi Universal
    Bracket FinishBlack powdercoated
    Pulley MaterialBillet Aluminum
    Water Pump Nose Cone IncludedYes
    Vendor Part Number30160-08
    Package Qty1
    Package TypeEA
