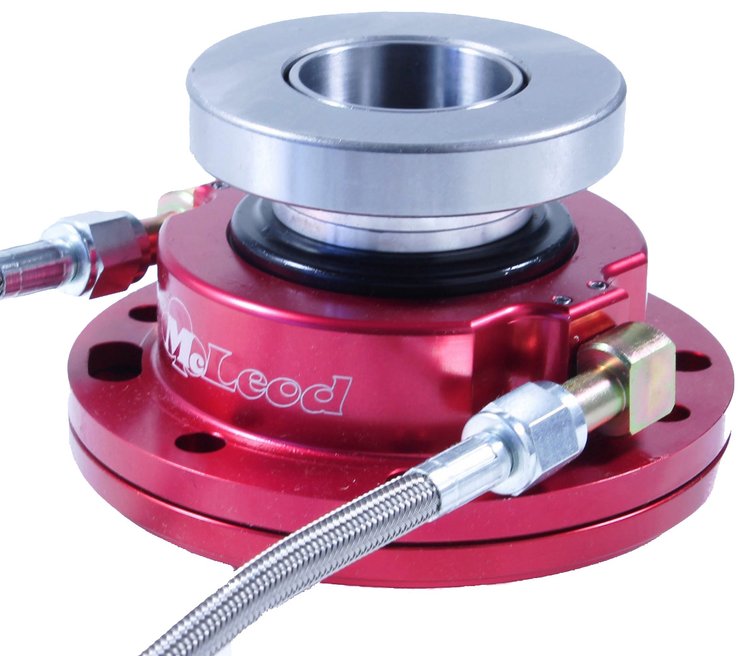

Hydraulic Throwout Bearing, 1-1/8 in. 26-Spline, for GM Tremec TKX 5-Speed Transmission
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-1350

Hydraulic Throwout Bearing, 1-1/8 in. 26-Spline, for GM Tremec TKX 5-Speed Transmission

$35550$395.00You Save$39.50
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Hydraulic Throwout Bearings
Hydraulic Throwout Bearing
  • GM Tremec TKX 5-Speed
  • 1-1/8 in. 26-Spline Input Shaft
  • 3.000 in. Bearing Face O.D., 1.590 in. I.D.
  • 4.680 in. Stock Collar I.D.

    The Tremec TKX has become a popular 5-speed swap choice for classic GM muscle cars, and this McLeod 1300 Series bearing is sized to match it for hydraulic clutch actuation.

    McLeod 1350 Hydraulic Throwout Bearing Features:

    • Fits GM applications using the Tremec TKX 5-speed transmission.
    • 1-1/8 in. 26-spline input shaft compatibility.
    • 1.590 in. bearing face I.D. and 3.000 in. bearing face O.D.
    • 4.680 in. stock collar I.D.
    • Available spacer heights of 2.590 in., 2.740 in., or 2.890 in.
    • Hard-anodized billet aluminum construction with stainless steel lines.
    • Not compatible with OEM self-adjusting or counterweighted diaphragm pressure plates.
    • Upgrade to a Modern Throwout Bearing for Your Manual Transmission

      McLeod 1300-Series Hydraulic Throwout Bearings are high-quality replacements for factory bearing retainers, providing precision clutch actuation. They are designed for applications where the "A" dimension (bell housing rear surface to the top of the pressure plate release fingers) is less than 3 inches. Each throwout bearing features a hard-anodized billet aluminum body, elbow swivel fittings, and high-pressure stainless steel braided lines for strength and durability.

      Show More

      Upgrade your clutch system with confidence using McLeod Bolt-On Hydraulic Throwout Bearings — a precision-engineered solution designed to deliver smoother shifts, improved clutch modulation, and long-lasting performance. Whether you’re building a high-power street car, restoring a classic, or prepping a competition machine, these hydraulic throwout bearings simplify installation and enhance drivability compared to traditional mechanical linkage systems.

      McLeod hydraulic throwout bearing units eliminate the need for external clutch linkage, providing a clean, direct interface between your clutch pedal and pressure plate. This means less drivetrain lash, more consistent pedal feel, and reduced maintenance over time. Their bolt-on design makes them an ideal upgrade for performance enthusiasts who want professional-grade results without complicated modifications or fabrication.

      One of the biggest advantages of a McLeod hydraulic throwout bearing is the improved clutch engagement it delivers. By centralizing actuation at the bearing, these assemblies reduce wasted motion and help ensure smooth clutch release — especially helpful in high-power, high-load applications where precise control matters most. Whether you’re launching hard at the strip, crawling through traffic, or shifting quickly on the street, this design enhances clutch feel and response with every gear change.

      Built with durable materials and engineered to meet McLeod’s strict quality standards, the mcleod hydraulic throwout bearing holds up to demanding use and helps extend the life of your clutch components. Installation is straightforward with bolt-on compatibility for many popular transmissions and bellhousing patterns, making it accessible to experienced DIY mechanics and professional builders alike.

      If you’re looking for a clutch actuation upgrade that offers smoother operation, reliable performance, and a modern feel, the McLeod throwout bearing is a smart investment — helping you get more out of your drivetrain with less fuss and greater confidence behind the wheel.

    Part TypeClutch Release Bearing and Slave Cylinder Assembly
    Product LineMcLeod Bolt-On Hydraulic Throwout Bearings
    BrandMCLEOD
    Package Height3.2
    Package Width5.5
    Package Length13.2
    Weight2.9 PG
    Part CategoryPerformance Parts
    TransmissionTremec TKX 5 Speed
    Trans TypeGM Tremec TKX 5-Speed
    Throwout Bearing StyleHydraulic
    QuantitySold individually.
    Bearing Face I.D. (In.)1.590 in.
    Spline1 1/8 in. x 26
    Stock Collar I.D. (In.)4.680 in.
    "A" Dimension2.50 in. to 2.99 in.
    Master Cylinder IncludedNo
    Part FitmentUniversal
    Hoses IncludedYes
    FinishRed Anodized
    NotesThis bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
    Bearing Face O.D. (In.)3.000 in.
    Package Qty1
    Package TypeEA
