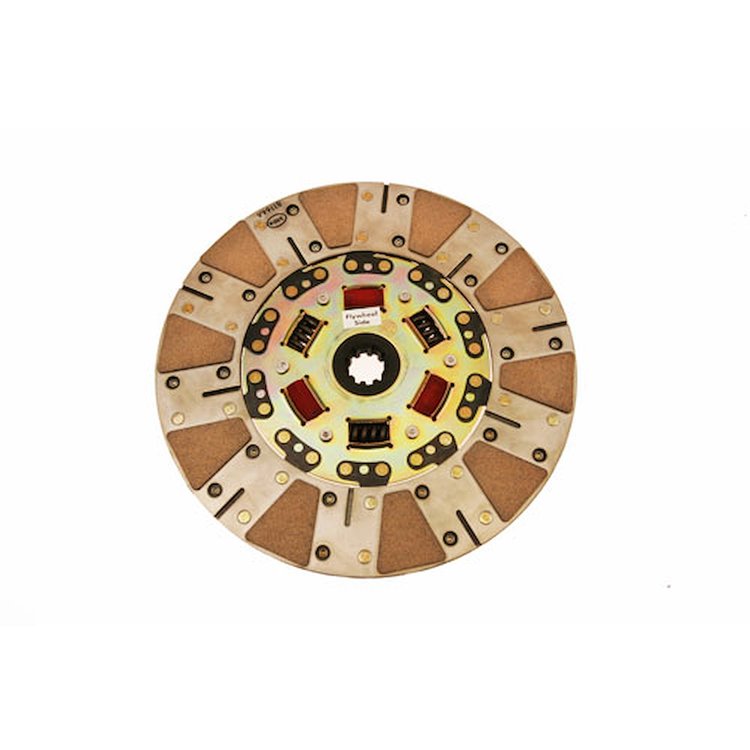

DISC PERF. SPRUNG HUB BRZ BUTTON FACING 10.5 X 1-3/16 X 18 SPL

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Disc: 500 Series:Ceramic/Organic Facing:10.5" X 1-3/16 X 18 Spline

The 500 Series Is a great High Performance Disc In The Single Disc Platform. Suited For Both Street And Strip Duty, The 500 Series Will Give You Both The Smooth Engagement And Holding Power You Need To Get The Job Done. This Disc Has A Segmented Semi Metallic Ceramic Facing On the flywheel side and a full face orgainc on the pressure plate side for a smooth engagement. Mcleod Racing Offer Various Input Shaft Splines For All The Popular Vehicles In 9-11/16", 10.5",11" & 12" Disc Diameters.

Part TypeClutch Disc

BrandMCLEOD

Package Height2.0

Package Width12.0

Package Length13.0

Part CategoryPerformance Parts

Disc StyleFull face, sprung hub

Disc Diameter (Mm)267

Input Spline Quantity18 in (457.2 mm)

Material Pressure Plate SideOrganic

Disc Diameter10.5 in (266.7 mm)

Material Flywheel SideMetal Backed

QuantitySold individually

Input Shaft Diameter1.188 in (30.175 mm)

Disc MaterialOrganic/Ceramic

Part FitmentSemi Universal

Spline1 3/16" x 18

Vendor Part Number260550

Package Qty1

Package TypeEA
