Vehicle Info NeededMCLEODPART NUMBER: 673-460260

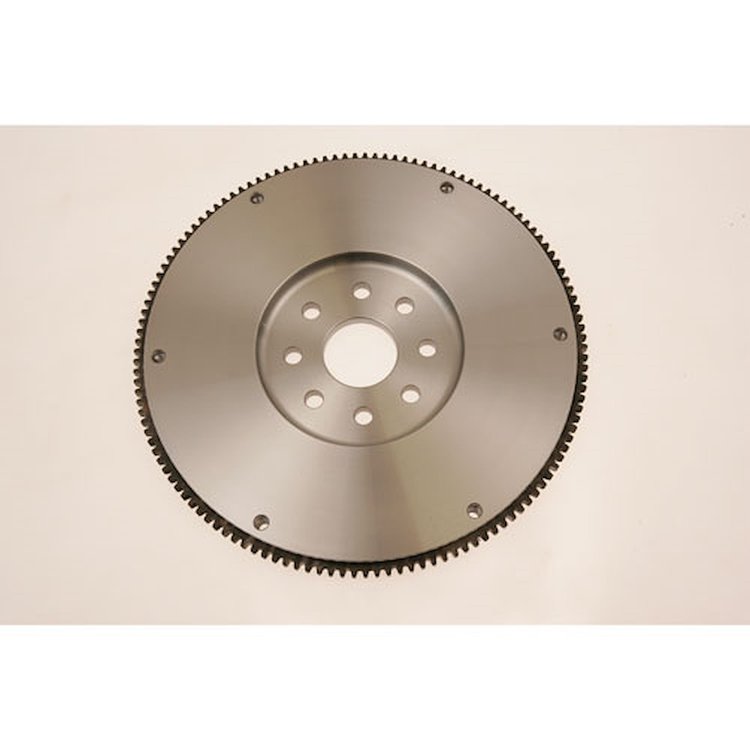

Billet Steel Clutch Flywheel, SFI 1.1, 168-Tooth, 6-Bolt, for 1986-1999 Chevy SBC Engine
$34650$385.00You Save$38.50
4 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeGM
Clutch Flywheel1986-1999 Chevy SBC Engine Billet Steel Construction 168-Tooth Ring Gear, 36 lb. 6-Bolt Crank, 1-Piece Rear Main Seal
Late small-block Chevy engines switched to a 1-piece rear main seal, and this McLeod flywheel is machined specifically for that small-register bore so it drops in without adapter work.
McLeod 460260 Clutch Flywheel Features:
- Fits 1986-1999 Chevy small-block engines with a 1-piece rear main seal (small register).
- 6-bolt crankshaft-to-flywheel bolt pattern.
- CNC-machined from billet steel with a 1045 hardened steel ring gear.
- 168-tooth ring gear engages the factory starter.
- Accepts 10.500 in., 11.000 in., or 12.000 in. clutch disc diameters.
- SFI 1.1 approved at 36 lb of rotating weight.
- Works with Borg & Beck/diaphragm pressure plates.
- Counterweight kit 560222 available separately if required.
Part TypeFlywheel
BrandMCLEOD
Package Height2.0
Package Width14.8
Package Length15.5
Weight38.1 PG
Weight36.000 lbs.
Part CategoryPerformance Parts
Ring Gear Tooth Quantity168-tooth
Ring Gear168 tooth
Marine UseNo
Clutch Patterns11" & 12" B&B & Diaphragm Shouldered Bolt
Additional Counter Weight Kit Required (560222
Pressure Plate StyleBorg & Beck/Diaphragm
Replaceable Friction SurfaceNo
QuantitySold individually.
MakeChevy
Disc Diameter (In.)10.500/11.000/12.000 in.
Engine BalanceInternal/External
Flywheel MaterialBillet steel
Sfi 1.1 ApprovedYes
Rear Main Seal Style1-piece
Counterweight Kit IncludedNo
Additional Counter Weight Kit Required (Lbs.)560222
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity6-bolt
Safety RatingSFI 1.1
NotesBecause of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Vendor Part Number460260
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
