Vehicle Info NeededMCLEODPART NUMBER: 673-460370

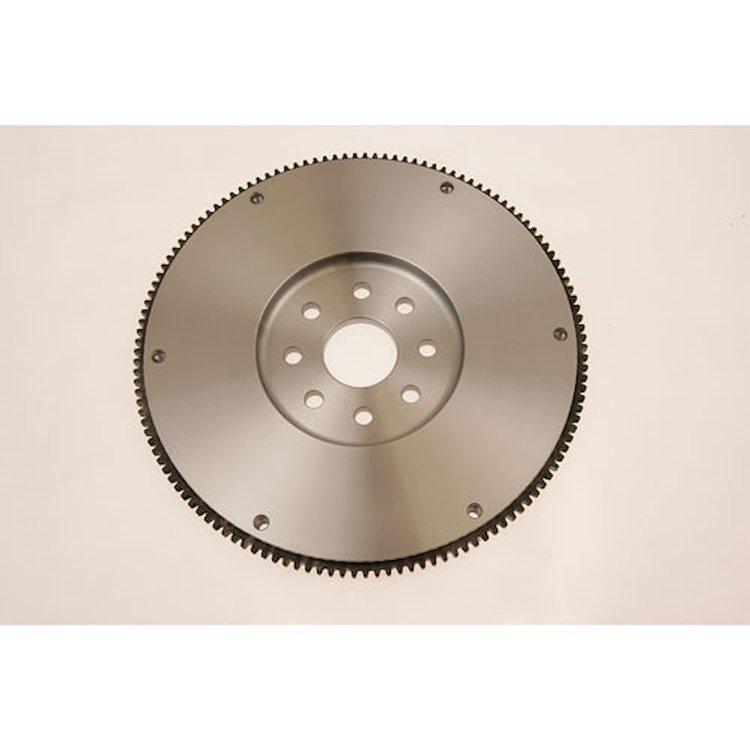

Billet Steel Conversion Flywheel, SFI 1.1, 153-Tooth, 6-Bolt, for 1955-1990 Chevy SBC/BBC to LT1 T56
$44550$495.00You Save$49.50
1 left in stock
Lowest Price GuaranteeGM
Clutch Flywheel1955-1990 Chevy SBC/BBC to LT1 T56 Swap Billet Steel Construction 153-Tooth Ring Gear, 30 lb. 2-Piece Rear Main Seal
Bolting a modern LT1 T56 six-speed behind a classic small-block or big-block Chevy takes a flywheel that bridges both eras. This McLeod conversion flywheel keeps the older 2-piece rear main seal crank while setting up the pull-style clutch linkage the T56 swap needs.
McLeod 460370 Clutch Flywheel Features:
- Fits 1955-1985 Chevy SBC and 1970-1990 Chevy BBC engines with a 2-piece rear main seal (large register).
- Also fits 1991-and-later Chevy BBC 454, 502, and 572 engines with a 1-piece seal (large register).
- Sets up the crank to accept a 1993-1997 LT1 T56 transmission and pull-style clutch system.
- 6-bolt crankshaft-to-flywheel bolt pattern.
- CNC-machined from billet steel with a 1045 hardened steel ring gear.
- 153-tooth ring gear engages the factory starter.
- 11.000 in. clutch disc diameter.
- SFI 1.1 approved at 30 lb of rotating weight.
- Counterweight kit 560222 available separately if required.
Part TypeFlywheel
BrandMCLEOD
Package Height2.2
Package Width14.6
Package Length14.6
Weight28.15 PG
Weight30.000 lbs.
Part CategoryPerformance Parts
Ring Gear Tooth Quantity153-tooth
Ring Gear153 tooth
Marine UseNo
Clutch Patterns11" Diaphragm LT-1 Pull Style
Additional Counter Weight Kit Required (560222
Pressure Plate StyleDiaphragm
Replaceable Friction SurfaceNo
QuantitySold individually.
MakeChevy/Pontiac
Disc Diameter (In.)11.000 in.
Flywheel MaterialBillet steel
Sfi 1.1 ApprovedYes
Rear Main Seal Style2-piece
Counterweight Kit IncludedNo
Additional Counter Weight Kit Required (Lbs.)560222
Disc Diameter11 in (279.4 mm)
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity6-bolt
Safety RatingSFI 1.1
NotesThis is a conversion flywheel to be used a 1993-97 LT-1 T-56 and a pull style clutch system.
Vendor Part Number460370
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
