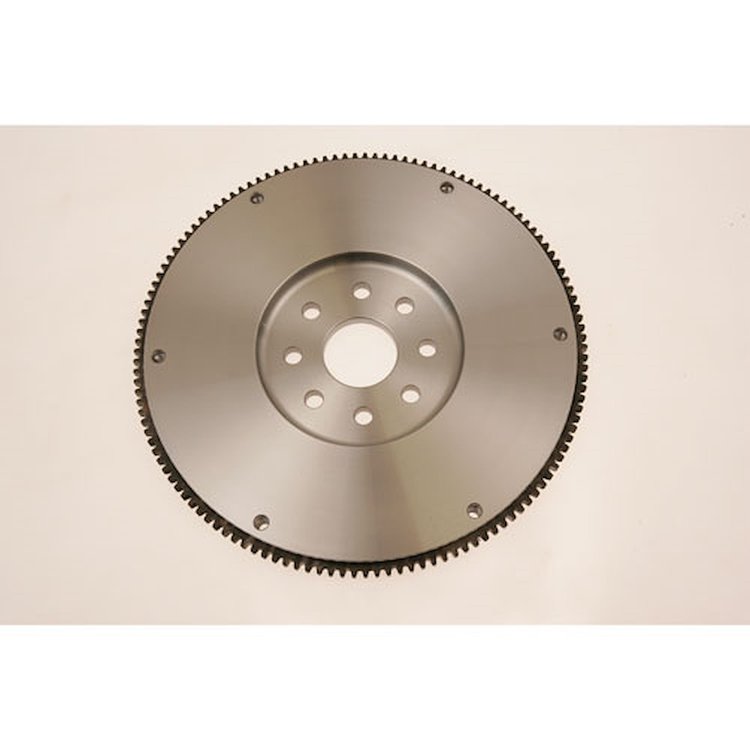

Billet Steel Clutch Flywheel, 157-Tooth, 24 lb., 6-Bolt, SFI 1.1, for 1963-1995 Ford 289/302/351 Engine
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-463100

Billet Steel Clutch Flywheel, 157-Tooth, 24 lb., 6-Bolt, SFI 1.1, for 1963-1995 Ford 289/302/351 Engine

$32850$365.00You Save$36.50
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Ford
Clutch Flywheel
  • 1963-1995 Ford 289/302/351 Engine
  • Billet Steel Construction
  • 157-Tooth Ring Gear, 24 lb.
  • Includes Counterweight Kit

    Small-block Ford engines built before the factory changed bellhousing patterns still need a flywheel that matches the original 6-bolt crank. This McLeod billet steel flywheel is machined for that exact fitment and ships with the counterweight kit needed for balance.

    McLeod 463100 Clutch Flywheel Features:

    • Fits 1963-1995 Ford 289, 302, and 351 small-block engines.
    • 6-bolt crankshaft-to-flywheel bolt pattern.
    • CNC-machined from billet steel with a 1045 hardened steel ring gear.
    • 157-tooth ring gear engages the factory starter.
    • 10.500 in. clutch disc diameter.
    • Matches the 10.5 in. Mustang diaphragm clutch pattern with dowel pins.
    • Counterweight kit included for internal/external engine balance.
    • SFI 1.1 approved at 24 lb of rotating weight.
  • Part TypeFlywheel
    BrandMCLEOD
    Package Height2.0
    Package Width17.3
    Package Length17.9
    Weight26.5 PG
    Weight24 lb
    Part CategoryPerformance Parts
    Ring Gear Tooth Quantity157-tooth
    Ring Gear157 tooth
    Marine UseNo
    Clutch Patterns10" & 10.5" Long & 10" Diaphragm
    Additional Counter Weight Kit Required (563333
    Pressure Plate StyleDiaphragm
    Replaceable Friction SurfaceNo
    QuantitySold individually.
    MakeFord
    Disc Diameter (In.)10.500 in.
    Engine BalanceInternal/External
    Flywheel MaterialBillet steel
    Sfi 1.1 ApprovedYes
    Counterweight Kit IncludedYes
    Additional Counter Weight Kit Required (Lbs.)563333
    Disc Diameter10 in (254 mm)
    Part FitmentDirect Fit
    Crankshaft To Flywheel Bolt Quantity6-bolt
    Safety RatingSFI 1.1
    Notes1986-Up 10.5 in. Mustang Diaphragm w/Dowel Pins clutch pattern.
    Vendor Part Number463100
    Package Qty1
    Package TypeEA
