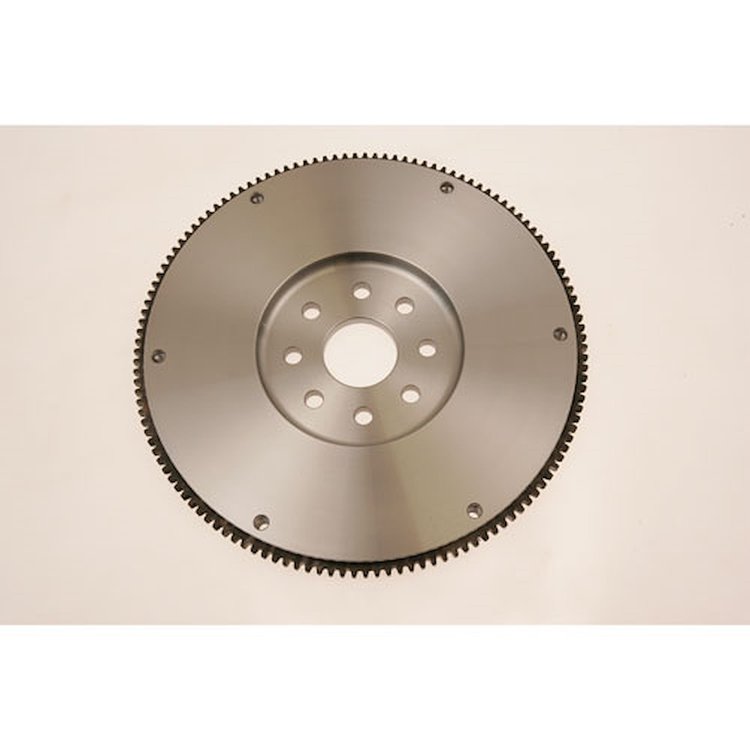

Billet Steel Clutch Flywheel, SFI 1.1, 164-Tooth, 6-Bolt, for 1963-1995 Ford 289/302/351 Engine
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-463200

Billet Steel Clutch Flywheel, SFI 1.1, 164-Tooth, 6-Bolt, for 1963-1995 Ford 289/302/351 Engine

$32850$365.00You Save$36.50
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Ford
Clutch Flywheel
  • 1963-1995 Ford 289/302/351 Engine
  • Billet Steel Construction
  • 164-Tooth Ring Gear, 29 lb.
  • Includes Counterweight Kit

    Rebuilding a small-block Ford calls for a flywheel that matches both the crank bolt pattern and the pressure plate style you plan to run. This McLeod billet steel flywheel covers the common 6-bolt small-block pattern and ships with its counterweight kit already included.

    McLeod 463200 Clutch Flywheel Features:

    • Fits 1963-1995 Ford 289, 302, and 351 small-block engines.
    • 6-bolt crankshaft-to-flywheel bolt pattern.
    • CNC-machined from billet steel with a 1045 hardened steel ring gear.
    • 164-tooth ring gear engages the factory starter.
    • Accepts 10.000 in., 10.500 in., or 11.000 in. clutch disc diameters.
    • Counterweight kit included for internal/external engine balance.
    • SFI 1.1 approved at 29 lb of rotating weight.
    • Works with Borg & Beck, diaphragm, or long-style pressure plates.
  • Part TypeFlywheel
    BrandMCLEOD
    Package Height1.9
    Package Width14.8
    Package Length15.7
    Weight32.2 PG
    Weight29 lb
    Part CategoryPerformance Parts
    Ring Gear Tooth Quantity164-tooth
    Ring Gear164 tooth
    Marine UseNo
    Clutch Patterns11" Diaphragm Ford Trucks - Even Pattern
    Additional Counter Weight Kit Required (563333
    Pressure Plate StyleBorg & Beck/Diaphragm/Long
    Replaceable Friction SurfaceNo
    QuantitySold individually.
    MakeFord
    Disc Diameter (In.)10.000/10.500/11.000 in.
    Engine BalanceInternal/External
    Flywheel MaterialBillet steel
    Sfi 1.1 ApprovedYes
    Counterweight Kit IncludedYes
    Additional Counter Weight Kit Required (Lbs.)563333
    Disc Diameter10 in (254 mm)
    Part FitmentDirect Fit
    Crankshaft To Flywheel Bolt Quantity6-bolt
    Safety RatingSFI 1.1
    Notes1986-Up 10.5 in. Mustang Diaphragm w/Dowel Pins clutch pattern.
    Vendor Part Number463200
    Package Qty1
    Package TypeEA
