MCLEODPART NUMBER: 673-463222

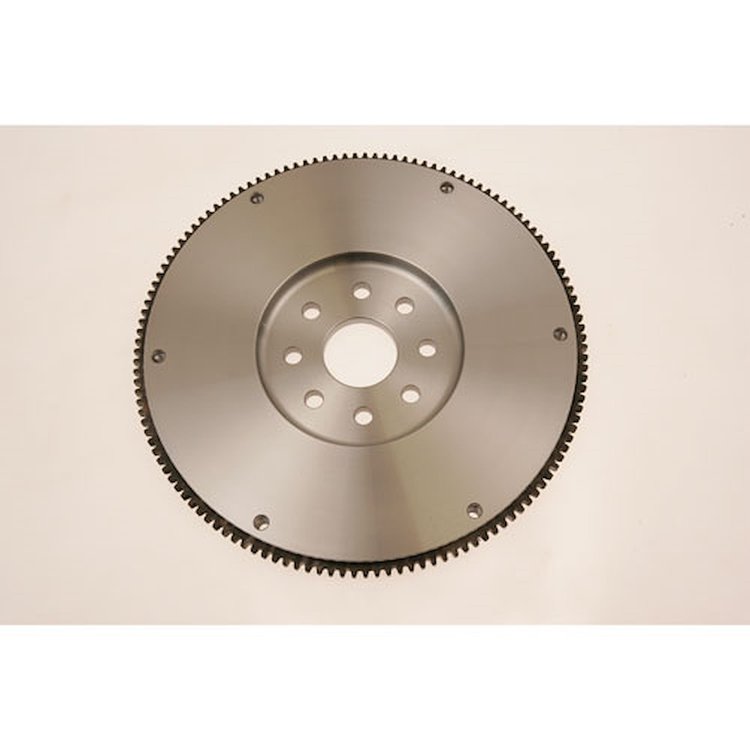

Billet Steel Clutch Flywheel, SFI 1.1, 176-Tooth, 6-Bolt, for 1969-1998 Ford 429/460 Big Block Engine
$37350$415.00You Save$41.50
Ford
Clutch Flywheel1969-1998 Ford 429/460 Big Block Engine Billet Steel Construction 176-Tooth Ring Gear, 34 lb. Includes Counterweight Kit
Big block Ford swaps that need external balance correction can eat up a build's budget hunting down the right counterweight. This McLeod flywheel ships with a matching counterweight kit so the balance work is already handled.
McLeod 463222 Clutch Flywheel Features:
- Fits 1969-1998 Ford 429 and 460 big block engines.
- 6-bolt crankshaft-to-flywheel bolt pattern.
- CNC-machined from billet steel with a 1045 hardened steel ring gear.
- 176-tooth ring gear engages the factory starter.
- Accepts 11.000 in., 11.500 in., or 12.000 in. clutch disc diameters.
- Counterweight kit included for internal/external engine balance.
- SFI 1.1 approved at 34 lb of rotating weight.
- Works with Borg & Beck, diaphragm, or long-style pressure plates.
Part TypeFlywheel
BrandMCLEOD
Package Height2.0
Package Width14.5
Package Length14.5
Weight30.0 PG
Weight34 lbs.
Part CategoryPerformance Parts
Ring Gear Tooth Quantity176-tooth
Ring Gear184 tooth
Marine UseNo
Clutch Patterns11" Diaphragm Ford Trucks - Even Pattern
Additional Counter Weight Kit Required (563333
Pressure Plate StyleBorg & Beck/Diaphragm/Long
Replaceable Friction SurfaceNo
QuantitySold individually.
MakeFord
Disc Diameter (In.)11.000/11.500/12.000 in.
Engine BalanceInternal/External
Flywheel MaterialBillet steel
Sfi 1.1 ApprovedYes
Counterweight Kit IncludedYes
Additional Counter Weight Kit Required (Lbs.)563333
Disc Diameter11.5 in (292.1 mm)
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity6-bolt
Safety RatingSFI 1.1
NotesBecause of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Vendor Part Number463222
Package Qty1
Package TypeEA
