Vehicle Info NeededMCLEODPART NUMBER: 673-560530

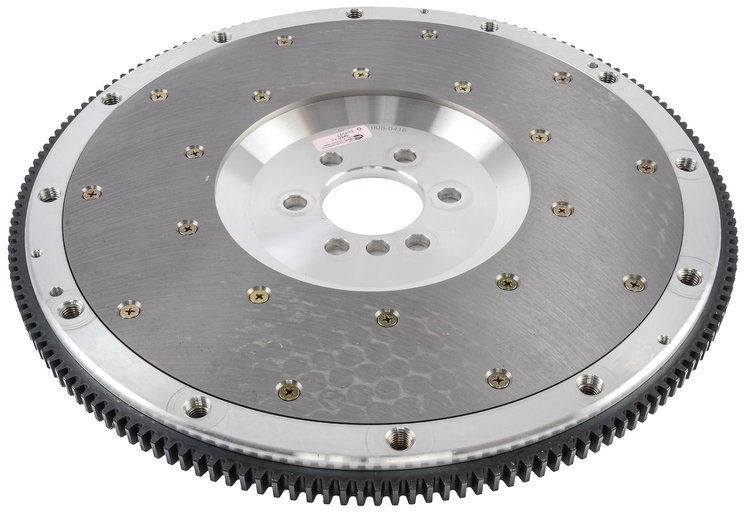

Billet Aluminum Clutch Flywheel, SFI 1.1, 168-Tooth, 6-Bolt, for 1997-Up GM LS-Series Engine
$49500
Ships on Nov 02, 2026
Lowest Price GuaranteeChevrolet
Clutch Flywheel1997-Up GM LS-Series Engine Billet Aluminum Construction 168-Tooth Ring Gear, 15 lb. 6-Bolt Crank, SFI 1.1 Rated
Quicker engine response starts with less rotating mass at the flywheel, and this McLeod billet aluminum flywheel trims weight without giving up ring gear durability. It is built to handle boosted and naturally aspirated LS combinations alike.
McLeod 560530 Clutch Flywheel Features:
- Fits 1997-up GM LS1, LS2, LS3, LS6, and LS7 engines with a 6-bolt crank.
- CNC-machined from 6061-T6 billet aluminum.
- 168-tooth 1045 hardened steel ring gear.
- Replaceable steel friction plate for long-term serviceability.
- SFI 1.1 approved at 15 lb.
- Works with Borg & Beck/diaphragm pressure plates.
- Flywheel-to-crankshaft fit may require light heating for correct seating; use caution, as the flywheel will be hot.
McLeod aluminum flywheels are ideal for numerous applications. These lightweight units are generally not recommended for naturally aspirated street vehicles, but will work well in lightweight vehicles with either supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels.
Part TypeFlywheel
Product LineMcLeod Aluminum Flywheels
BrandMCLEOD
Package Height2.0
Package Width14.7
Package Length15.7
Weight13.7 PG
Weight15.000 lbs.
Part CategoryPerformance Parts
Ring Gear Tooth Quantity168-tooth
Ring Gear168 tooth
Marine UseNo
Clutch Patterns11" & 12" B&B & Diaphragm Shouldered Bolt
Pressure Plate StyleBorg & Beck/Diaphragm
Replaceable Friction SurfaceYes
QuantitySold individually.
MakeChevy
Disc Diameter (In.)11.000/12.000 in.
Flywheel MaterialBillet aluminum
Sfi 1.1 ApprovedYes
Rear Main Seal Style1-piece
Disc Diameter12 in (304.8 mm)
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity6-bolt
Safety RatingSFI 1.1
NotesBecause of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Vendor Part Number560530
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
