Vehicle Info NeededMCLEODPART NUMBER: 673-6335807

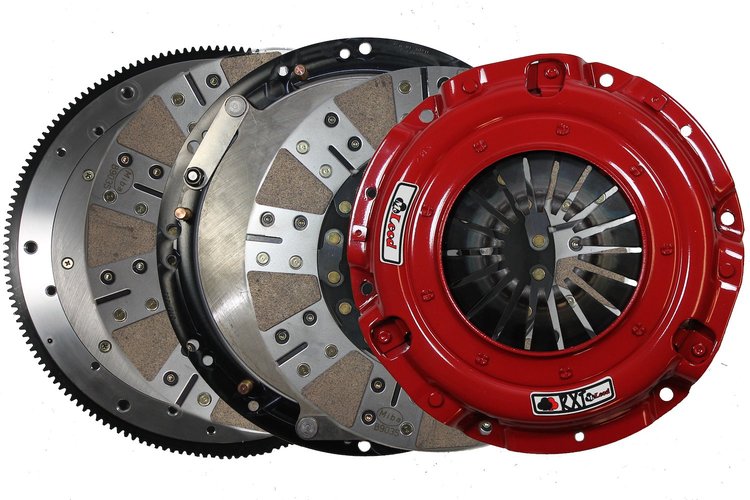

800 HP Twin-Disc Clutch Kit with Aluminum Flywheel for 2005-2017 Ford Mustang 4.6L/5.0L
$1,07550$1195.00You Save$119.50
9 left in stock
Ships Tomorrow
Lowest Price GuaranteeRST Clutch Kits
Twin-Disc Clutch Kit2005-2017 Ford Mustang 4.6L/5.0L Engine 800 HP Rating, Aluminum Flywheel 164-Tooth Ring Gear, 26-Spline Includes Flywheel and Hardware
This McLeod twin-disc kit gives 4.6L and 5.0L Mustangs a higher-capacity clutch while keeping pedal effort comfortable for daily driving. A billet aluminum flywheel pairs with organic disc facings for a street-oriented setup rated to 800 horsepower.
McLeod 6335807 Twin-Disc Clutch Kit with Aluminum Flywheel Features:
- Fits 2005-2017 Ford Mustang
- Covers the 4.6L and 5.0L engine
- Rated for up to 800 horsepower
- Twin organic full-face discs with a diaphragm pressure plate
- Includes a billet aluminum flywheel with 164-tooth ring gear
- 8-bolt crankshaft fit with 1.125 in. x 26-spline input shaft
- Built for use with an aftermarket transmission; 2011-2017 applications may require a crank relearn procedure
Part TypeClutch Kit
BrandMCLEOD
Package Height5.0
Package Width16.0
Package Length17.0
Weight42.0 PG
Part CategoryPerformance Parts
Disc StyleFull face
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageStreet
Spline Count26
Disc Diameter (In.)9.688 in.
Flywheel IncludedYes
Disc Diameter (Mm)246mm
Input Shaft Diameter1.125 in.
Disc MaterialOrganic
NotesAftermarket Transmission. 2011-17 applications may require crank relearn procedure or professional tuning.
Ring Gear Tooth Quantity164-tooth
Clutch Disc Quantity2
Hub StyleSolid
QuantitySold as a kit.
MakeFord
Horsepower Rating800
Engine BalanceInternal
Flywheel MaterialBillet aluminum
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26
Flywheel Bolt Quantity8
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity8-bolt
Vendor Part Number6335807
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
