Vehicle Info NeededMCLEODPART NUMBER: 673-6435807

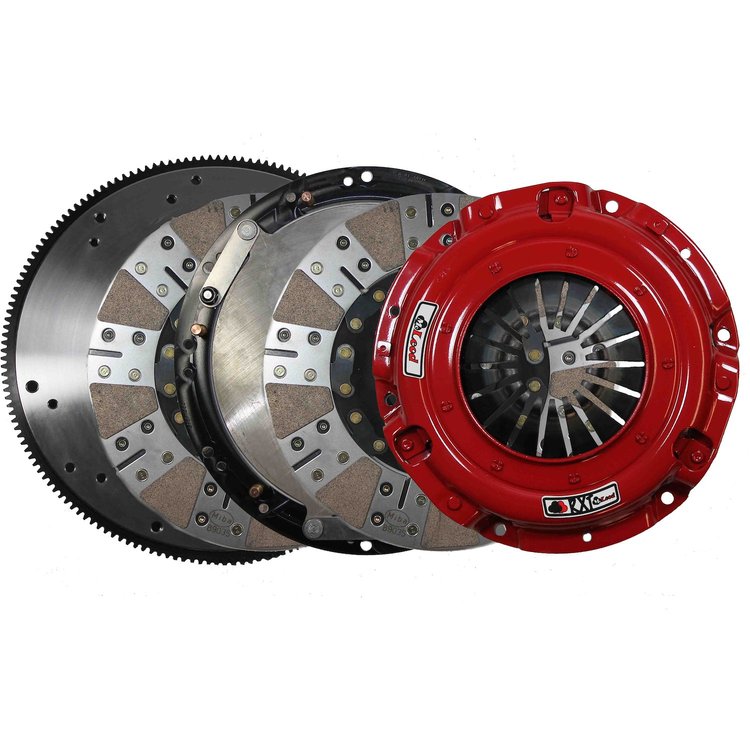

800 HP Twin-Disc Clutch Kit with Steel Flywheel for 2005-2017 Ford Mustang 4.6L/5.0L
$1,29500
1 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeRST Clutch Kits
Twin-Disc Clutch Kit2005-2017 Ford Mustang 4.6L/5.0L Engine 800 HP Rating, Steel Flywheel 164-Tooth Ring Gear, 26-Spline Includes Flywheel and Hardware
This McLeod kit brings a higher-capacity twin-disc clutch to 4.6L and 5.0L Mustangs without sacrificing street drivability. A billet steel flywheel and organic disc facings keep pedal effort light for daily use.
McLeod 6435807 Twin-Disc Clutch Kit with Steel Flywheel Features:
- Fits 2005-2017 Ford Mustang
- Covers the 4.6L and 5.0L engine
- Rated for up to 800 horsepower
- Twin organic full-face discs with a diaphragm pressure plate
- Includes a billet steel flywheel with 164-tooth ring gear
- 8-bolt crankshaft fit with 1.125 in. x 26-spline input shaft
- Built for use with an aftermarket transmission; 2011-2017 applications may require a crank relearn procedure
High-Horsepower Street Use!
McLeod RST Twin Disc Clutch Kits are intended for high-horsepower street use, capable of handling up to 800 HP. Each clutch kit features organic lined discs that will provide smooth engagement and soft pedal feel. What makes RST twin clutches unique is that there is no need for a specifically dedicated flywheel, most applications can retain the existing flywheel (horsepower pending), which truly makes RST twin clutches ideal for the street performance enthusiast.
Part TypeClutch Kit
Product LineMcLeod RST Twin Disc Clutch Kits
BrandMCLEOD
Package Height5.7
Package Width16.4
Package Length17.0
Weight45.77 PG
Part CategoryPerformance Parts
Disc StyleFull face
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageStreet
Spline Count26
Disc Diameter (In.)9.688 in.
Flywheel IncludedYes
Disc Diameter (Mm)246mm
Input Shaft Diameter1.125 in.
Disc MaterialOrganic
NotesAftermarket Transmission. 2011-17 applications may require crank relearn procedure or professional tuning.
Ring Gear Tooth Quantity164-tooth
Clutch Disc Quantity2
Hub StyleSolid
QuantitySold as a kit.
MakeFord
Horsepower Rating800
Engine BalanceInternal
Flywheel MaterialBillet steel
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26
Flywheel Bolt Quantity8
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity8-bolt
Vendor Part Number6435807
Package Qty1
Package TypeEA
