Vehicle Info NeededMCLEODPART NUMBER: 673-6435807M

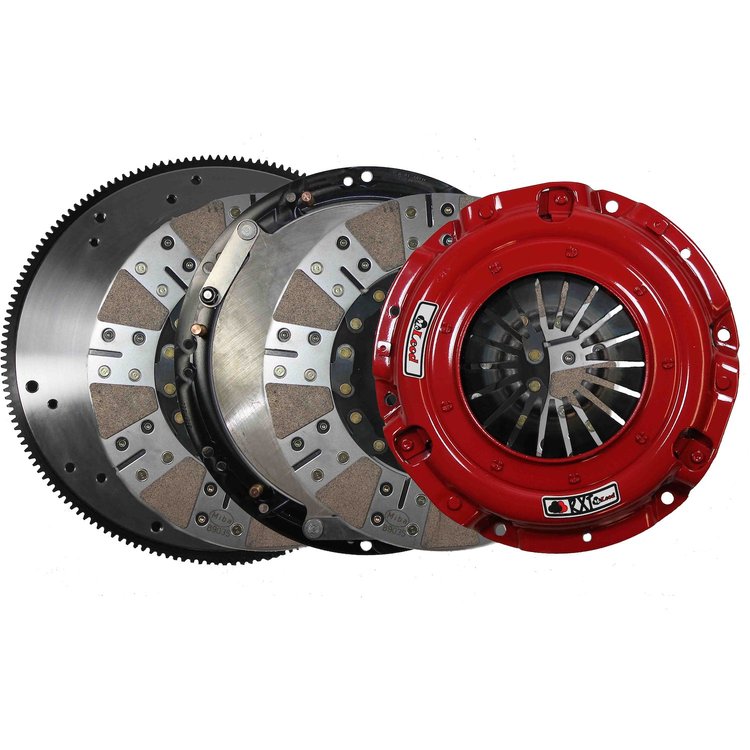

1100 HP Twin-Disc Clutch Kit with Steel Flywheel for 2005-2017 Ford Mustang 4.6L/5.0L
$1,25550$1395.00You Save$139.50
10 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeRXT Clutch Kits
Twin-Disc Clutch Kit2005-2017 Ford Mustang 4.6L/5.0L Engine 1100 HP Rating, Steel Flywheel 164-Tooth Ring Gear, 26-Spline Includes Flywheel and Hardware
This McLeod twin-disc kit pairs a billet steel flywheel with ceramic-lined discs to give modular and Coyote-powered Mustangs a clutch rated well beyond stock power levels. It is set up for use behind an aftermarket transmission.
McLeod 6435807M Twin-Disc Clutch Kit with Steel Flywheel Features:
- Fits 2005-2017 Ford Mustang
- Covers the 4.6L and 5.0L engine
- Rated for up to 1100 horsepower
- Twin ceramic segmented discs with a diaphragm pressure plate
- Includes a billet steel flywheel with 164-tooth ring gear
- 8-bolt crankshaft fit with 1.125 in. x 26-spline input shaft
- Built for use with an aftermarket transmission; 2011-2017 applications may require a crank relearn procedure
Part TypeClutch Kit
BrandMCLEOD
Package Height5.7
Package Width16.5
Package Length17.0
Weight47.53 PG
Part CategoryPerformance Parts
Disc StyleSegmented
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageStreet/Track
Spline Count26
Disc Diameter (In.)9.688 in.
Flywheel IncludedYes
Disc Diameter (Mm)246mm
Input Shaft Diameter1.125 in.
Disc MaterialCeramic
NotesAftermarket Transmission. 2011-17 applications may require crank relearn procedure or professional tuning.
Ring Gear Tooth Quantity164-tooth
Clutch Disc Quantity2
Hub StyleSolid
QuantitySold as a kit.
MakeFord
Horsepower Rating1100
Engine BalanceInternal
Flywheel MaterialBillet steel
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26
Flywheel Bolt Quantity8
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity8-bolt
Vendor Part Number6435807M
Package Qty1
Package TypeEA
