Vehicle Info NeededMCLEODPART NUMBER: 673-6435825
800 HP Twin-Disc Clutch Kit with Steel Flywheel for 2011-2017 Ford Mustang GT/Boss 302 5.0L
$1,16550$1295.00You Save$129.50
1 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeRST Clutch Kits

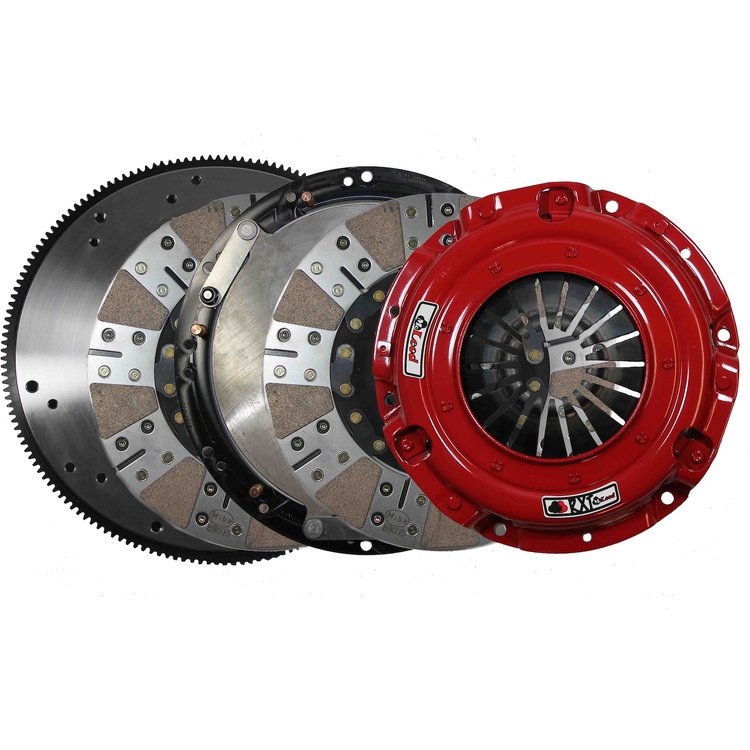

Twin-Disc Clutch Kit2011-2017 Ford Mustang GT/Boss 302 5.0L Engine 800 HP Rating, Steel Flywheel 164-Tooth Ring Gear, 1.000 in. x 23M-Spline Includes Flywheel and Hardware
This McLeod kit is sized for the 5.0L Coyote's 23-spline input shaft, giving GT and Boss 302 Mustangs added torque capacity while keeping the clutch pedal comfortable for street driving. Organic disc facings and a billet steel flywheel round out the street-oriented setup.
McLeod 6435825 Twin-Disc Clutch Kit with Steel Flywheel Features:
- Fits 2011-2017 Ford Mustang GT and Boss 302
- Matched to the 5.0L engine
- Rated for up to 800 horsepower
- Twin organic full-face discs with a diaphragm pressure plate
- Includes a billet steel flywheel with 164-tooth ring gear
- 8-bolt crankshaft fit with 1.000 in. x 23M-spline input shaft
- Includes mounting hardware; throwout bearing not included
High-Horsepower Street Use!
McLeod RST Twin Disc Clutch Kits are intended for high-horsepower street use, capable of handling up to 800 HP. Each clutch kit features organic lined discs that will provide smooth engagement and soft pedal feel. What makes RST twin clutches unique is that there is no need for a specifically dedicated flywheel, most applications can retain the existing flywheel (horsepower pending), which truly makes RST twin clutches ideal for the street performance enthusiast.
Part TypeClutch Kit
Product LineMcLeod RST Twin Disc Clutch Kits
BrandMCLEOD
Package Height7.0
Package Width16.0
Package Length16.0
Weight50.0 PG
Part CategoryPerformance Parts
Disc StyleFull face
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageStreet
Disc Diameter (In.)9.688 in.
Flywheel IncludedYes
Disc Diameter (Mm)246mm
Input Shaft Diameter1.000 in.
Disc MaterialOrganic
Ring Gear Tooth Quantity164-tooth
Clutch Disc Quantity2
Hub StyleSolid
QuantitySold as a kit.
MakeFord
Horsepower Rating800
Engine BalanceInternal
Flywheel MaterialBillet steel
Input Shaft Diameter (In.)1.000 in.
Input Spline Quantity23M
Flywheel Bolt Quantity8
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity8-bolt
Vendor Part Number6435825
Package Qty1
Package TypeEA
