Vehicle Info NeededMCLEODPART NUMBER: 673-6435825M

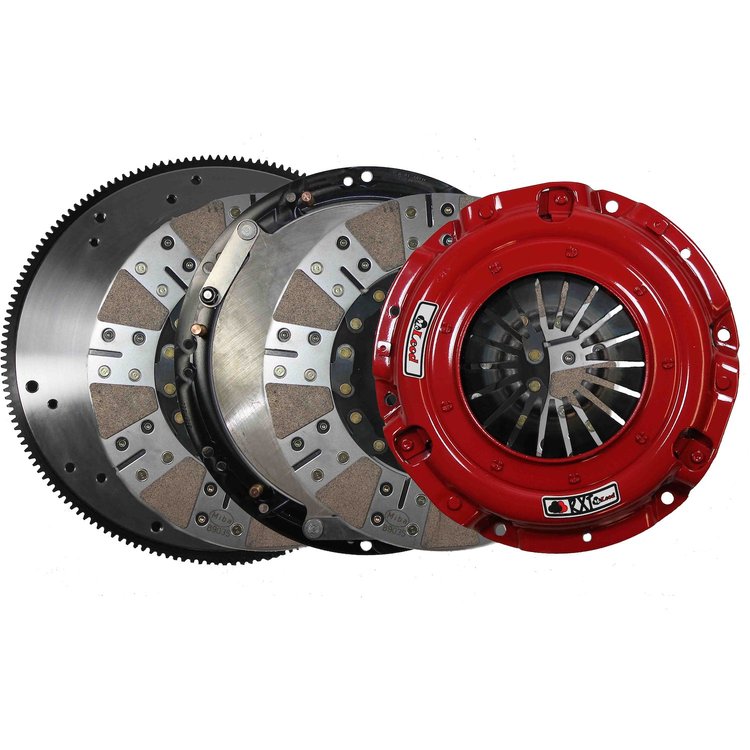

1100 HP Twin-Disc Clutch Kit with Steel Flywheel for 2011-2017 Ford Mustang GT/Boss 302 5.0L
$1,25550$1395.00You Save$139.50
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeRXT Clutch Kits
Twin-Disc Clutch Kit2011-2017 Ford Mustang GT/Boss 302 5.0L Engine 1100 HP Rating, Steel Flywheel 164-Tooth Ring Gear, 1.000 in. x 23M-Spline Includes Flywheel and Hardware
This McLeod kit is built around the 5.0L Coyote's 23-spline input shaft, giving GT and Boss 302 Mustangs a twin-disc clutch rated for serious power without an input shaft swap. A billet steel flywheel and ceramic discs handle the added clamping load.
McLeod 6435825M Twin-Disc Clutch Kit with Steel Flywheel Features:
- Fits 2011-2017 Ford Mustang GT and Boss 302
- Matched to the 5.0L engine
- Rated for up to 1100 horsepower
- Twin ceramic segmented discs with a diaphragm pressure plate
- Includes a billet steel flywheel with 164-tooth ring gear
- 8-bolt crankshaft fit with 1.000 in. x 23M-spline input shaft
- Includes mounting hardware; throwout bearing not included
Part TypeClutch Kit
BrandMCLEOD
Package Height6.0
Package Width16.0
Package Length17.5
Weight47.67 PG
Part CategoryPerformance Parts
Disc StyleSegmented
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageStreet/Track
Disc Diameter (In.)9.688 in.
Flywheel IncludedYes
Disc Diameter (Mm)246mm
Input Shaft Diameter1.000 in.
Disc MaterialCeramic
Ring Gear Tooth Quantity164-tooth
Clutch Disc Quantity2
Hub StyleSolid
QuantitySold as a kit.
MakeFord
Horsepower Rating1100
Engine BalanceInternal
Flywheel MaterialBillet steel
Input Shaft Diameter (In.)1.000 in.
Input Spline Quantity23M
Flywheel Bolt Quantity8
Part FitmentDirect Fit
Crankshaft To Flywheel Bolt Quantity8-bolt
Vendor Part Number6435825M
Package Qty1
Package TypeEA
