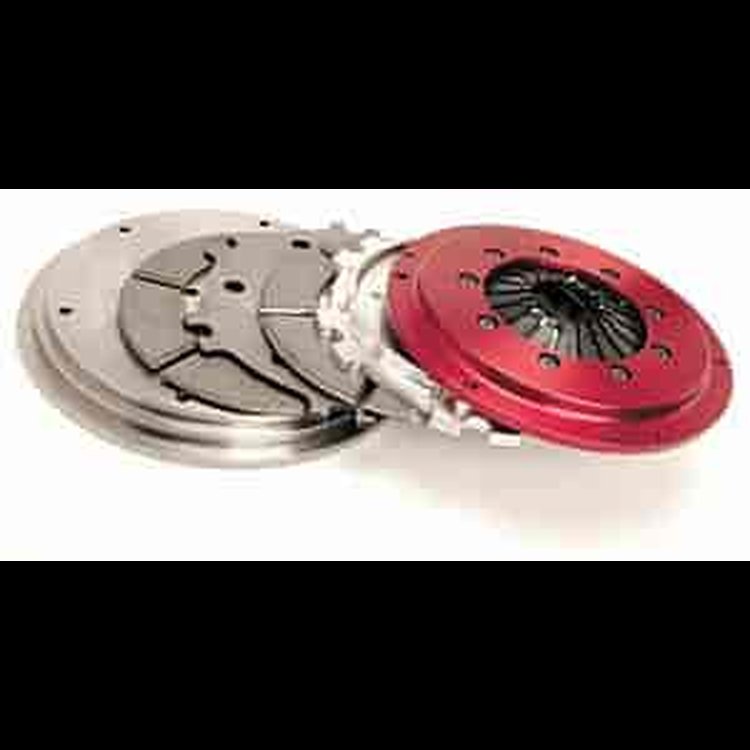

Vehicle Info NeededSport Compact Drag Mag Clutch Assembly Mazda Rotary
Ships Tomorrow
Lowest Price Guarantee- Sport Compact Drag Mag Clutch Assembly
- 1983-1992 Mazda Rotary Engines (Turbo II)
- 1-1/8" x 26 Spline
- Steel Flywheel, No Ring Gear
- Mag Force:Double Disc:Steel:Pin Drive:1974-02 13B Turbo: 1-1/8x26
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
The Drag Mag clutch system is designed for high horsepower & high RPM Sport Compact applications. Available for some Mazda, Toyota and Mitsubishi applications, this multi-disc clutch system can handle the horsepower of your giant killer engine! These clutch systems feature diaphragm style pressure plates to maintain a low pedal pressure with excellent holding capacity. Twin sintered iron friction plates will provide the holding capacity at high RPM along with desirable launch characteristics. The steel flywheels included with these kits DO NOT include a ring gear, however the flywheel is machined to accept the OEM ring gear. Due to the pin drive on the floater and pressure ring these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
