RXT Street Twin Clutch Ford Small Block Cable Linkage
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-6923-03C

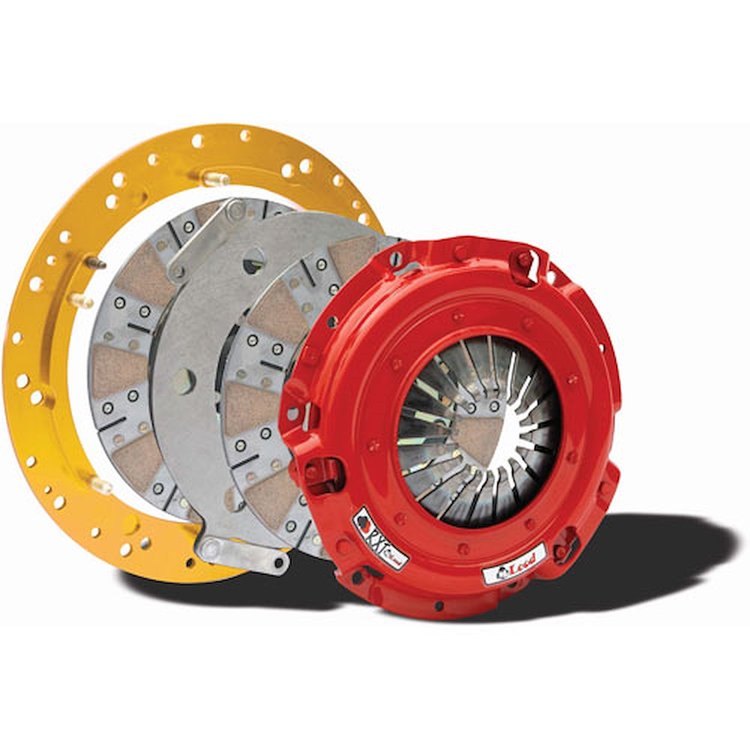

RXT Street Twin Clutch Ford Small Block Cable Linkage

$1,16550$1295.00You Save$129.50
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford
    RXT Street Twin Clutch
  • Ford Small Block Cable Linkage
  • 1-1/16'' x 10 Spline
  • Fits 157 Tooth Flywheel

    All units ending in 'C' have in the kit (1) 673-16909, (1) 673-1724, (1) 673-1735.
    It is recommended to use an adjustable cable with these units. 1980-93 cable part number 673-1723, 1994-04 cable part number 673-1733.

    Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ? mile passes then drive back home, the RXT is what you?ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars

  • RXT:9.687" Dia. Disc:Ford:1986-2001 GT:1993-98 Cobra:1-1/16x10: Cable Link:
Part TypeClutch Kit
BrandMCLEOD
Package Height16.0
Package Width17.0
Package Length26.0
Weight31.0 PG
Disc StyleFull Face/Multi Pad
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedYes
Clutch UsageStreet/Track
Spline1 1/16" x 10
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)246
Input Shaft Diameter1.063 in (27 mm)
Disc MaterialCeramic
Flywheel FitmentFits 157 Tooth Flywheel
Alignment Tool IncludedYes
Linkage TypeCable
Oe Flywheel SizeSmall
Clutch Patterns10",10.5" & 10.95" B-B & Diaphragm
Throwout Bearing StyleStandard
Hub StyleSolid
QuantitySold as a kit
Mounting Hardware IncludedYes
Counterweight AssistNo
MakeFord
Horsepower Rating1000
Input Spline Quantity10 in (254 mm)
Disc Diameter9-11/16
Part FitmentDirect Fit
Vendor Part Number6923-03C
Package Qty1
Package TypeEA
