MCLEODPART NUMBER: 673-6923-07HD

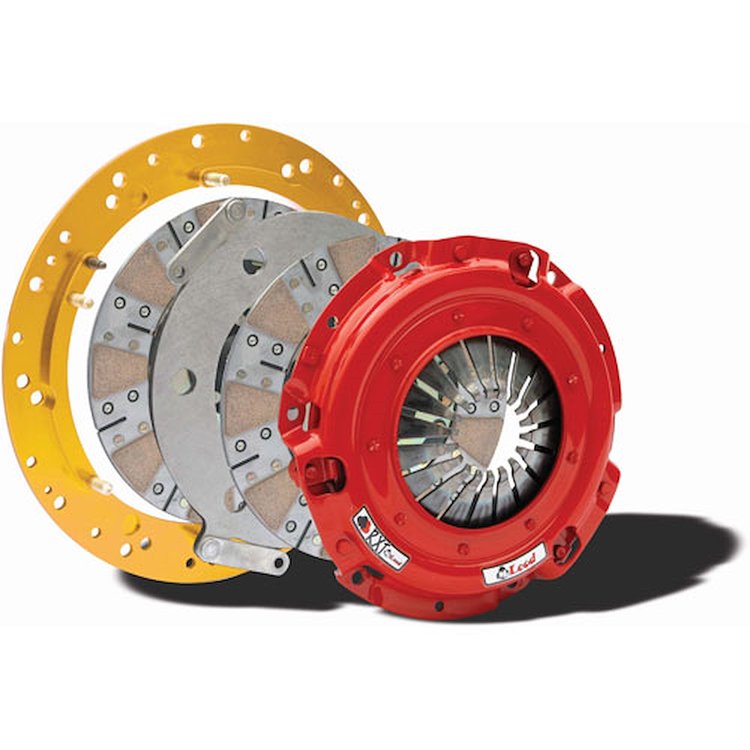

RXT HD Twin Disc Clutch Kit, Ceramic, 1300 HP, 1-1/8 in. 26-Spline, for GM/Ford/Mopar Small-Diameter Flywheel Pattern
$1,16550$1295.00You Save$129.50
4 left in stockGM
Twin Disc Clutch KitGM/Ford/Mopar Small-Diameter Flywheel Pattern 1300 HP Rating Ceramic Segmented Discs, 9.688 in. Includes Hardware, Flywheel Not Included
Serious street/strip power calls for more clamping force than a stock-style pressure plate can provide. This McLeod RXT HD kit bolts to your existing compatible flywheel through an adapter ring, so there is no need to source a separate dedicated flywheel.
McLeod 6923-07HD Twin Disc Clutch Kit Features:
- Bolts to GM, Ford, and Mopar small-diameter flywheels using the 10.5 in. Mustang diaphragm, Borg & Beck, or long clutch pattern.
- Rated to handle up to 1,300 hp.
- Twin ceramic, segmented discs, 9.688 in. diameter, with a solid-hub design.
- 1-1/8 in. 26-spline input shaft compatibility.
- Higher clamp-load diaphragm pressure plate with strap drive.
- Includes discs, pressure plate, and mounting hardware; flywheel sold separately.
Part TypeClutch Kit
BrandMCLEOD
Package Height5.5
Package Width16.0
Package Length17.0
Weight23.0 PG
Part CategoryPerformance Parts
Disc StyleSegmented
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageTrack
Spline Count26
Disc Diameter (In.)9.688 in.
Spline1 1/8" x 26
Pilot Bushing IncludedNo
Disc Diameter (Mm)246mm
Input Shaft Diameter1.125 in.
Disc MaterialCeramic
Flywheel FitmentFor use with Small Diameter Flywheel
Alignment Tool IncludedYes
Oe Flywheel SizeSmall
Clutch Patterns10.5" Mustang Diaphragm; 10.5" Borg & Beck; 10/10.5" Long Pattern
Clutch Disc Quantity2
Throwout Bearing StyleStandard
Hub StyleSolid
QuantitySold as a kit.
MakeGM, Ford, Mopar
Horsepower Rating1300
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26
Disc Diameter9-11/16
Part FitmentDirect Fit
Vendor Part Number6923-07HD
Package Qty1
Package TypeEA
