RXT Street Twin Clutch Ford/GM
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-6932-07

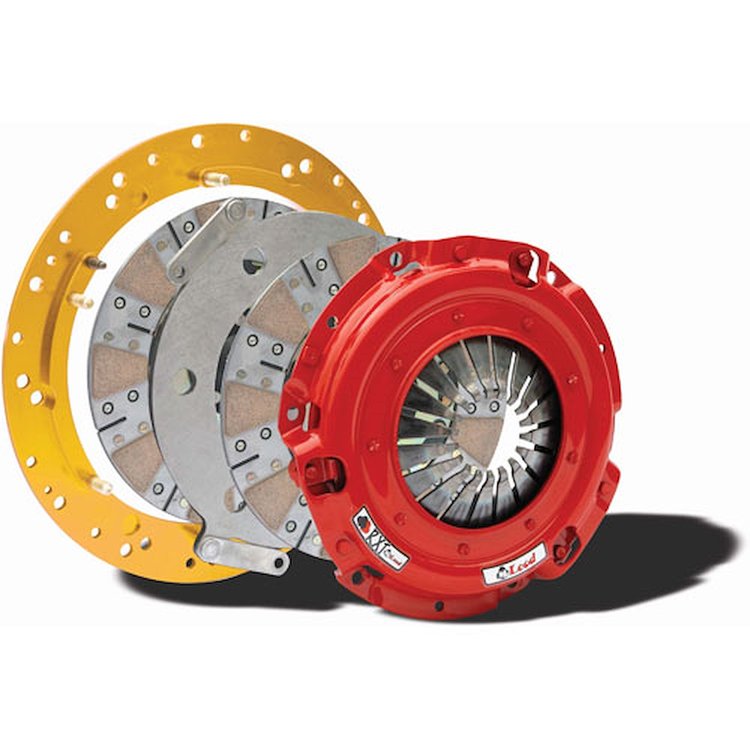

RXT Street Twin Clutch Ford/GM

$94500$1050.00You Save$105.00
2 left in stock
Lowest PriceLowest Price Guarantee

Ford/GM
    RXT Street Twin Clutch
  • 1997-2012 GM Passenger Car/LS1 V8
  • 1999-2010 Ford V8 & Modular 4.6L/5.4L
  • 1-1/8'' x 26 Spline
  • Fits 168 Tooth Flywheel

  • RXT:9.687" Dia. Disc:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/8x26
  • Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ? mile passes then drive back home, the RXT is what you?ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars

    1,000 HP of Holding Capacity for the Street!!

    The RXT Street Twin Clutch Assembly from McLeod Industries introduces a twin clutch that bolts to the stock flywheel for a simple, affordable high-performance upgrade. RXT Street Twin Clutches feature smooth engagement, excellent release qualities, and soft pedal effort, making them ideal for daily driven street vehicles.

Part TypeClutch Kit
Product LineMcLeod RXT Street Twin Clutch Kits
BrandMCLEOD
Package Height3.2
Package Width13.8
Package Length14.6
Weight26.17 PG
Disc StyleSegmented
Hardware IncludedYes
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsagePerformance
Spline Count26
Disc Diameter (In.)9.688 in.
Spline1 1/8" x 26
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)246
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialCeramic
Flywheel FitmentFor use with Ford Modular/GM LS-X
Alignment Tool IncludedYes
NotesCrank relief must be 6.250" or smaller for correct disc to flywheel contact. LS1/LS6 Flat Style Flywheels ONLY! Will NOT Work w/LS2/LS3/LS7 recessed flywheels. Ford Applications Aftermarket Transmission
Clutch Patterns11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Clutch Disc Quantity2
Throwout Bearing StyleStandard
Hub StyleSolid
QuantitySold as a kit.
Mounting Hardware IncludedNo
Counterweight AssistNo
MakeChevy, Ford, Pontiac
Horsepower Rating1100
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26 in (660.4 mm)
Disc Diameter9.688 in (246.075 mm)
Part FitmentDirect Fit
Vendor Part Number6932-07
Package Qty1
Package TypeEA
