Vehicle Info NeededMCLEODPART NUMBER: 673-6932-07HD

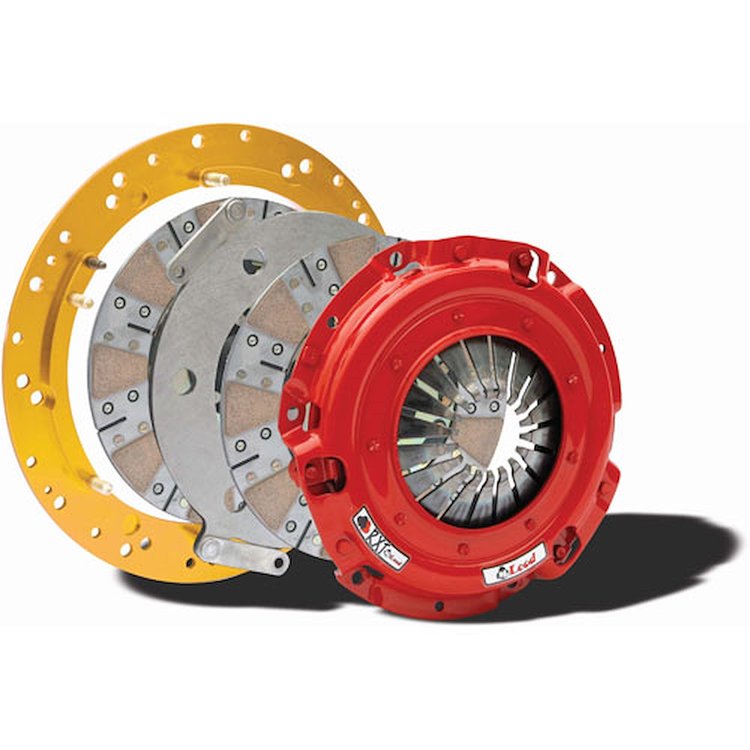

1300 HP Twin-Disc Clutch Kit with Metric Ring Gear for 1997-2015 GM LS & 2001-2017 Ford 4.6L/5.0L Engines
$1,16550$1295.00You Save$129.50
Ships on Sep 15, 2026
Lowest Price GuaranteeFord/GM
Twin-Disc Clutch Kit1997-2015 GM LS & 2001-2017 Ford 4.6L/5.0L 1300 HP Rating, Metric Ring Gear 1.125 in. x 26-Spline Includes Ceramic Twin Discs and Hardware
The McLeod RXT HD is built with a metric ring gear so it can bolt up to popular GM LS and Ford modular flywheels already in the engine bay. It is designed for street and strip use where high power needs a twin-disc clutch that still allows manual pedal control.
McLeod 6932-07HD Twin-Disc Clutch Kit Features:
- Adapter-ring design fits 1997-2015 GM LS-equipped Chevy Camaro, Corvette, and Pontiac Firebird/GTO models
- Also fits 2001-2017 Ford Mustang 4.6L and 5.0L applications
- Rated for up to 1300 horsepower
- Twin ceramic segmented discs with a diaphragm pressure plate
- 1.125 in. x 26-spline input shaft fit
- Requires an LS1/LS6 flat-style flywheel; not compatible with LS2/LS3/LS7 recessed flywheels
- Includes mounting hardware; flywheel sold separately
Part TypeClutch Kit
BrandMCLEOD
Package Height5.5
Package Width16.0
Package Length17.0
Weight23.0 PG
Part CategoryPerformance Parts
Disc StyleSegmented
Hardware IncludedYes
Number Of DiscsDouble
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
Clutch UsageTrack
Spline Count26
Disc Diameter (In.)9.688 in.
Spline1 1/8" x 26
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)246mm
Input Shaft Diameter1.125 in.
Disc MaterialCeramic
Flywheel FitmentFor use with Ford Modular/GM LS-X
Alignment Tool IncludedYes
NotesCrank relief must be 6.250" or smaller for correct disc to flywheel contact. LS1/LS6 Flat Style Flywheels ONLY! Will NOT Work w/LS2/LS3/LS7 recessed flywheels. Ford Applications Aftermarket Transmission
Clutch Patterns11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
Clutch Disc Quantity2
Throwout Bearing StyleStandard
Hub StyleSolid
QuantitySold as a kit.
MakeChevy, Ford, Pontiac
Horsepower Rating1300
Input Shaft Diameter (In.)1.125 in.
Input Spline Quantity26
Part FitmentDirect Fit
Vendor Part Number6932-07HD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
