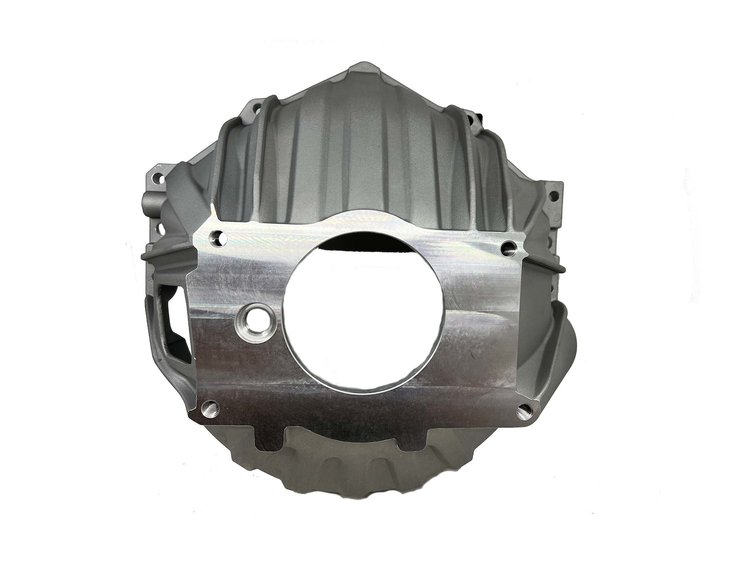

8520 Aluminum Bellhousing for Small, Big Block Chevy Engines [Non-SFI]
InfoVehicle Info Needed
MCLEODPART NUMBER: 673-8520

8520 Aluminum Bellhousing for Small, Big Block Chevy Engines [Non-SFI]

$20500
4 left in stock
ShippingShips on Nov 16, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Street Performance Clutch & Flywheel Kit for Select 1955-1985 Small Block Chevy & Big Block Chevy [Internally Balanced]

JEGS

Street Performance Clutch & Flywheel Kit for Select 1955-1985 Small Block Chevy & Big Block Chevy [Internally Balanced]

Part Number : 555-60085K2
$39998
Super Street Pro Clutch Kit 1955-1985 All Chevy V8

MCLEOD

Super Street Pro Clutch Kit 1955-1985 All Chevy V8

Part Number : 673-75224
$38500
Flywheel for 1955-1985 Small Block Chevy, 153-Tooth [Internally Balanced]

JEGS

Flywheel for 1955-1985 Small Block Chevy, 153-Tooth [Internally Balanced]

Part Number : 555-601200
$9699$104.69
You Save$7.70
Flywheel for Select 1955-1985 Small Block & Big Block Chevy, 168-Tooth [Internally Balanced]

JEGS

Flywheel for Select 1955-1985 Small Block & Big Block Chevy, 168-Tooth [Internally Balanced]

Part Number : 555-601205
$13999$153.99
You Save$14.00

GM
Aluminum Bellhousing
  • 1955-97 Small Block Chevy
  • 1970-2000 Big Block Chevy
  • 621-Style Non-SFI
  • Accepts 153T or 168T Flywheels
  • Cast Aluminum

    McLeod 8520 Aluminum Bellhousing for Small, Big Block Chevy Engines:

    • Cast aluminum construction provides strength with minimal weight
    • Natural finish for classic underhood appearance
    • Non-SFI rated for street and mild performance use
    • Weighs approximately 10.6 lbs
    • Compatible with both 153T and 168T flywheels
    • 4.685 in. bore diameter with 6.25 in. depth
    • Works with Muncie, T-10, Super T-10, and Saginaw manual transmissions

    McLeod 8520 Aluminum Bellhousing for Small, Big Block Chevy Engines Notes:

    • Fits 1955–1997 Small Block Chevy and 1970–2000 Big Block Chevy engines
    • Ideal for classic GM applications including 1960–1987 C10, 1967–1974 Camaro, and 1957–1974 Corvette models
    • Not certified for competitive racing applications requiring SFI approval
  • Part TypeBellhousing
    BrandMCLEOD
    Package Height7.0
    Package Width19.0
    Package Length20.0
    Weight18.0 PG
    Part CategoryPerformance Parts
    Clutch Fork IncludedNo
    Block Plate IncludedNo
    Bellhousing MaterialAluminum
    Sfi-ApprovedNo
    QuantitySold individually
    Part FitmentSemi Universal
    Flywheel FitmentFits 153/168 Tooth Flywheel
    Transmission TypeManual
    Bellhousing FinishNatural
    Vendor Part Number8520
    Package Qty1
    Package TypeEA
