Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford

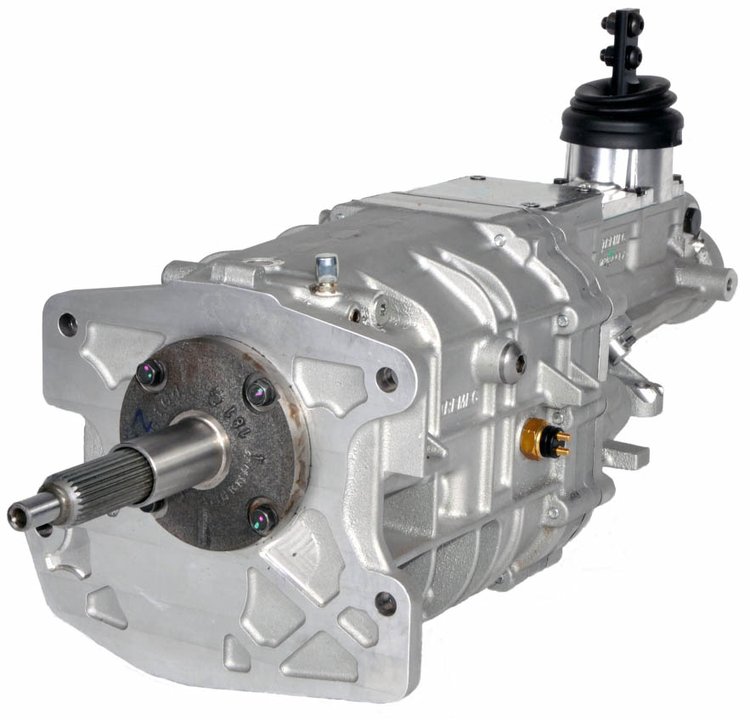

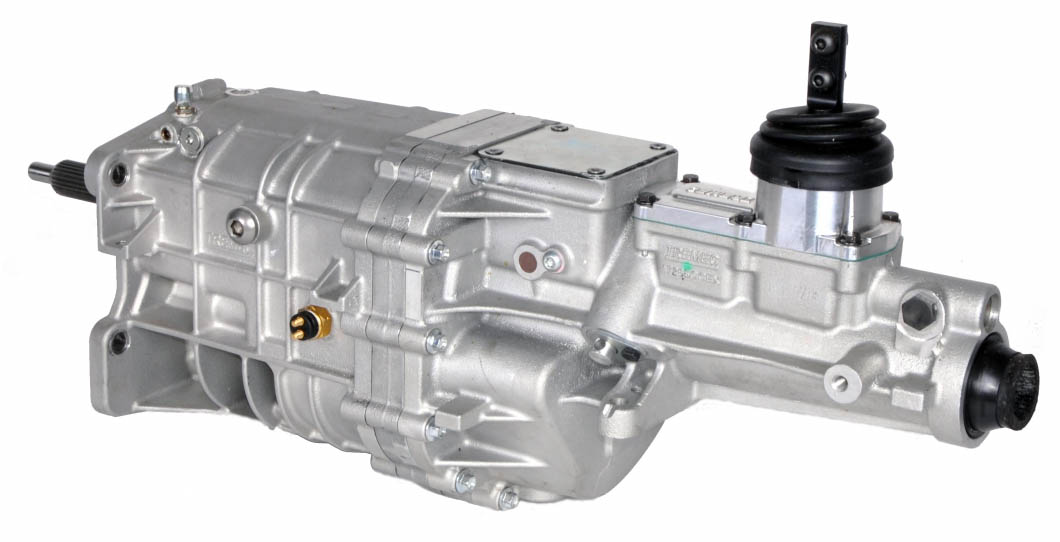

- Tremec TKX 5-Speed Manual Transmission
- Ford
- 1 1/8x26
- .81 5th Gear
- 600 ft.-lbs. of TQ Capacity
- 7,500 RPM Shifts
McLeod TCET 18084 Features:
TREMEC is pleased to announce the release of the new TKX, a 5-speed RWD manual transmission developed solely for the aftermarket.For the development of the new transmission, TREMEC engineers took a forward-looking approach to finding the best and most efficient solution. This included universal packaging, excellent shifting performance, and extreme durability.The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges and caged needle bearings in all gear positions.Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new TREMEC TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution. - Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications
- Torque Capacity: 600
- Input Shaft Diameter: 1.125
- Input Shaft Spline Quantity: 26
- Output Shaft Spline Quantity: 31
- Bellhousing Included: No
- Case Material: Aluminum
- Number of Gears: Five
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Forth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
- Reverse Gear Ratio: 2.56:1
- Shifter Included: Yes
- Yoke Included: No
- Yoke Style: Slip-on
Part TypeManual Transmission
BrandMCLEOD
Package Height14.0
Package Width17.0
Package Length34.0
Weight99.0 PG
Part CategoryPerformance Parts
Fourth Gear Ratio1.00:1
Number Of GearsFive
Second Gear Ratio1.89:1
QuantitySold individually
Transmission ModelTremec
First Gear Ratio2.87:1
Manual Transmission Gear MaterialSteel
Part FitmentSemi Universal
Shifter IncludedYes
Case MaterialAluminum
Third Gear Ratio1.28:1
Input Shaft Spline Quantity26
Bellhousing IncludedNo
Package Qty1
Package TypeEA
