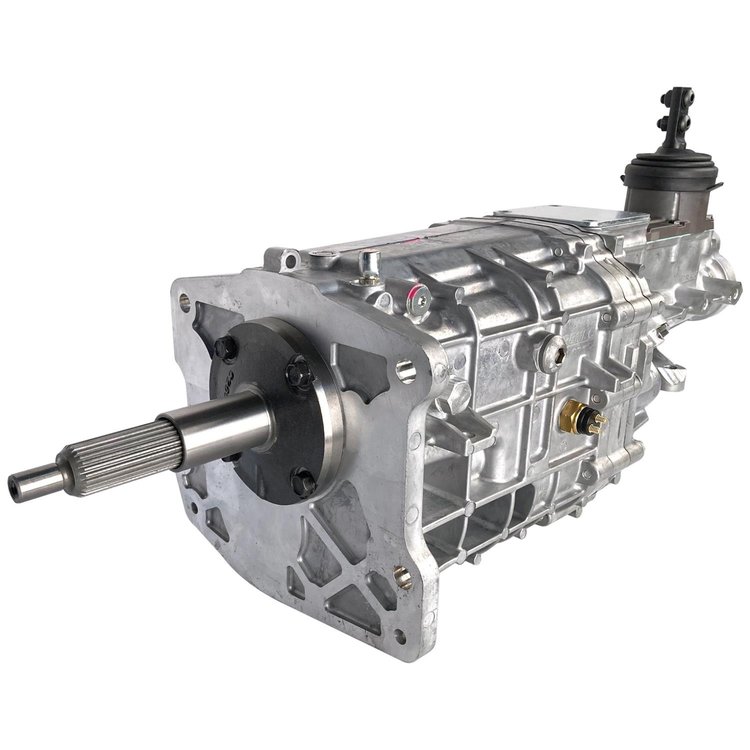

Tremec TKX 5-Speed Manual Transmission, Ford

Name: Tremec TKX 5-Speed Manual Transmission, Ford
Brand: MCLEOD
SKU: 673-TCET 18085
Price: 2895.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford

Ford
1 1/8x26
.72 5th Gear
600 ft.-lbs. of TQ Capacity
7,500 RPM Shifts

McLeod TCET 18085 Features:
TREMEC is pleased to announce the release of the new TKX, a 5-speed RWD manual transmission developed solely for the aftermarket.For the development of the new transmission, TREMEC engineers took a forward-looking approach to finding the best and most efficient solution. This included universal packaging, excellent shifting performance, and extreme durability.The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges and caged needle bearings in all gear positions.Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new TREMEC TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution.
Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications
Bellhousing Included: No
Number of Gears: Five
First Gear Ratio: 3.27:1
Second Gear Ratio: 1.98:1
Third Gear Ratio: 1.34:1
Forth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.72:1
Reverse Gear Ratio: 3.00:1
Shifter Included: Yes
Yoke Included: No
Yoke Style: Slip-on
Torque Capacity: 600
Input Shaft Diameter: 1.125
Input Shaft Spline Quantity: 26
Output Shaft Spline Quantity: 31

Your Aftermarket Performance Transmission Solution

Silver Sport Silver Sport Transmissions TKX 5-Speed Manual Transmissions are manufactured with one thing in mind, performance! This new and improved design is more compact and provides clearance in most transmission tunnels without floor modifications. They feature a three-piece aluminum housing, special-grade steel gears and shafts, and multi-cone synchronizers and hybrid synchronizer rings, all of which deliver superior strength and smooth, precise shifting. Available in multiple GM and Ford case patterns and input configurations, and gear ratios.

Part TypeManual Transmission

Product LineSilver Sport Transmissions TKX 5-Speed Manual Transmissions

BrandMCLEOD

Package Height14.0

Package Width17.0

Package Length34.0

Weight99.0 PG

Part CategoryPerformance Parts

Transmission ModelTremec

Number Of GearsFive

First Gear Ratio2.87:1

Manual Transmission Gear MaterialSteel
