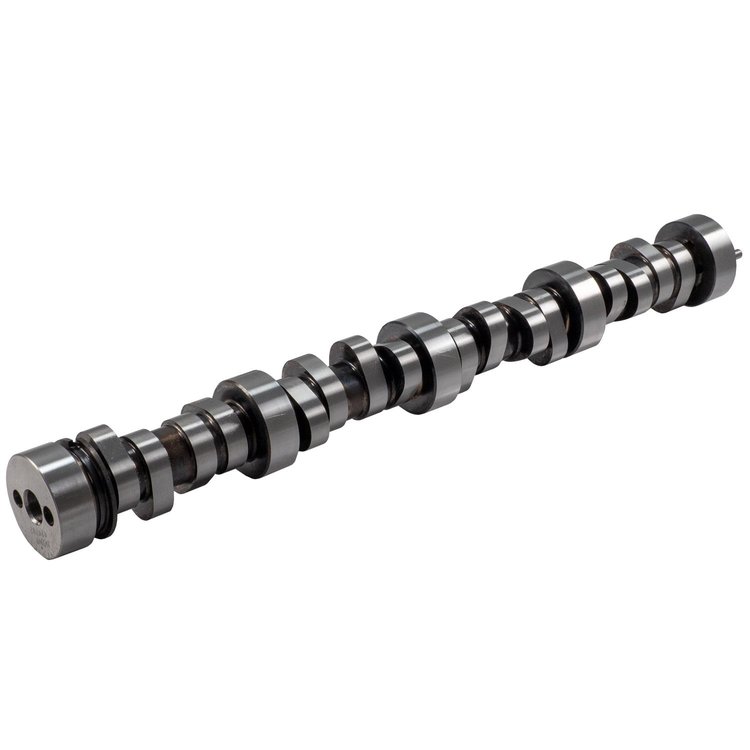

22412 Class IV Hydraulic Roller Camshaft for Select GM LS Gen III & IV Engines

Name: 22412 Class IV Hydraulic Roller Camshaft for Select GM LS Gen III & IV Engines
Brand: MELLING
SKU: 689-22412
Price: 371.99 USD
Availability: InStock

^$371⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

Class IV Hydraulic Roller Camshaft

GM Gen III & IV LS Series Engines

Lift: 0.612 in./0.612 in.

Duration @ 0.050 in.: 236°/246°

Lobe Separation: 110°

RPM Range: 2,000-6,500 RPM

Non-AFM Non-VVT

22412 Application Specifics:

Class IV Camshaft (245°- up)
For Serious Racers
Mid-High RPM - Good Horsepower and Torque
Rough at Idle - Best with Manual Transmissions or Very High Stall Converters
Proper Rear Axle Ratio is Required, as well as Carburation and Exhaust System Upgrades
Vacuum will be Inadequate for Power Accessories

This 3-Bolt Class IV Camshaft fits:

1999-2017 GM 4.8L
1999-2016 GM 5.3/6.0L
1997-2005 GM 5.7/6.0L
2007-2017 GM 6.2L

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Performance Cams from Class I to Class IV

Melling offers a full line of high-performance camshafts and Lifters for domestic cars, light trucks, import vehicles, marine engines, and high-performance engines.

Part TypeCamshaft

Product LineMelling High-Performance Camshafts & Lifters

BrandMELLING

Part CategoryPerformance Parts

Intake Duration At .050 Inch Lift236 DD

Exhaust Duration At .050 Inch Lift246 DD

Lobe Separation110 DD

Lifter TypeHydraulic Roller

Part FitmentDirect Fit

Computer Controlled CompatibleNo

Cam TypeHydraulic Roller

Grade TypePerformance
