Vehicle Info NeededMELLINGPART NUMBER: 689-22414

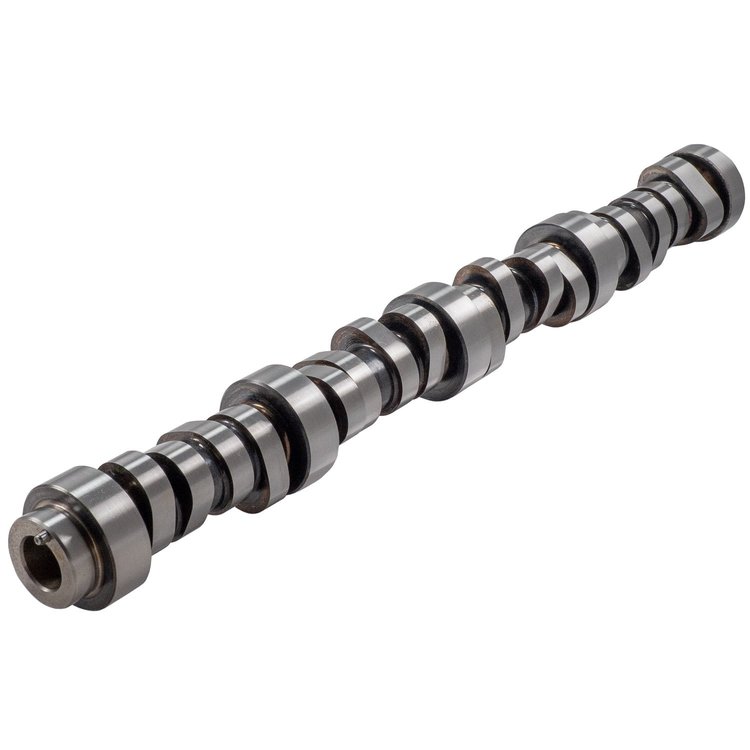

22414 Class IV Hydraulic Roller Camshaft for Select Chevy Camaro, Corvette w/6.2L Engine
$44899
Ships on 09/09/2026
Lowest Price GuaranteeGM
Class IV Hydraulic Roller Camshaft2016-2020 Chevy Camaro 2014-2019 Chevy Corvette 6.2L Engine Only Requires AFM Delete Lift: 0.577 in./0.577 in. Duration @ 0.050 in.: 228°/248° Lobe Separation: 116.5° RPM Range: 2200-5400
Melling 22414 Class IV Hydraulic Roller Camshaft
- For racing and competition
- Very high stall converter or standard transmission
- Needs proper rear gear ratio selection
- Needs fuel system upgrades
- Requires exhaust upgrade
- Will not provide enough vacuum for accessories
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandMELLING
Package Height2.75
Package Width3.0
Package Length24.5
Weight9.0 PG
Part CategoryPerformance Parts
Rocker Arm Ratio1.8
Intake Valve Lift0.577 in.
Intake Duration At .050 Inch Lift228 DD
Exhaust Duration At .050 Inch Lift248 DD
Lobe Separation116 DD
Lifter TypeHydraulic Roller
Part FitmentDirect Fit
Cam TypeHydraulic Roller
Grade TypePerformance
Exhaust Valve Lift0.577 in.
Vendor Part Number22414
Package Qty1
Package TypeEA
No Questions
No Reviews
