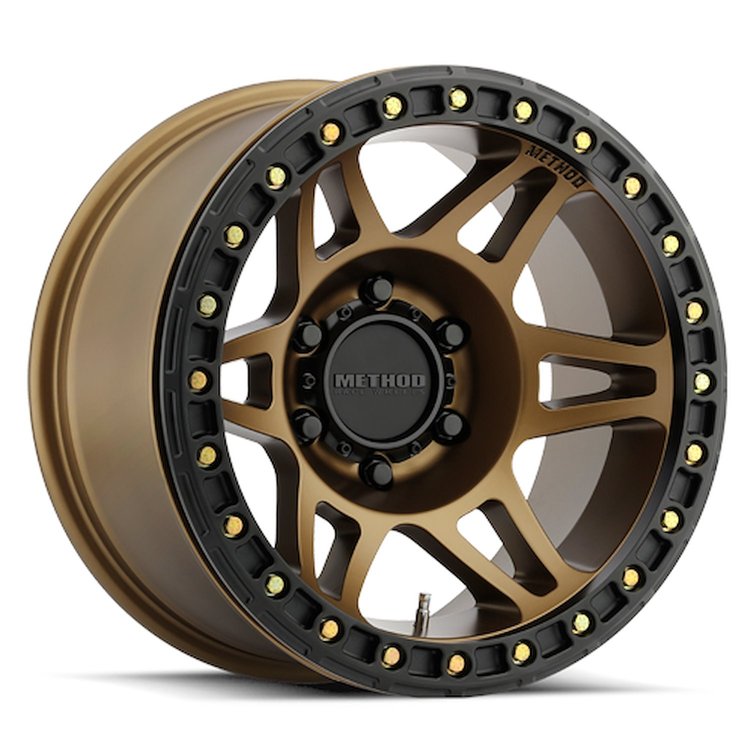

![MR10679080944B RACE MR106 Beadlock Wheel [Size: 17" x 9"] Method Bronze](https://www.jegs.com/images/mini_750/600/631/631-mr106790803.jpg)
METHOD RACE WHEELSPART NUMBER: 631-MR106790803
MR10679080944B RACE MR106 Beadlock Wheel [Size: 17" x 9"] Method Bronze
$58700
17" Diameter
RACE MR106 Beadlock WheelSize: 17" x 9" Bolt Pattern: 8 x 6.50" Offset: -44 mm Backspace: 3.50" Hub Bore: 130.81 mm Load: 3600 lbs. Finish: Method Bronze
JEGS How to Measure Wheel Fitment: Click Here
Method Race Wheels MR10679080944B RACE MR106 Beadlock Wheel Features:
- Solid A356 aluminum with T6 heat treatment construction
- Tough 6 windowed point design with debossed METHOD logos
- Forged 6061 aluminum V.3 beadlock ring is 53% thicker and reduces deflection
- Reinforced inner lip provides extreme strength and durability
- Extra wide bead seat is 17% bigger to accommodate largest tires
- Grade 8 zinc-plated beadlock hardware kit included
- Redundant sets of threaded beadlock hardware holes machined into wheel
- Recessed hardware has 360-degree protection to prevent bolt head shearing
- Bolt-on center cap with embossed METHOD logo
- Hub centric fitments for common applications
- Weight: 39.8 lbs.
- Center Cap Part Number: CP-1717B140-S1
- Hub Centric: Yes
- Mounting Pad Diameter: 200 mm
Part TypeWheel
BrandMETHOD RACE WHEELS
Package Height12.1
Package Width20.1
Package Length20.1
Weight39.1 PG
Weight39.8 lbs.
Part CategoryAccessories
Hub CentricYes
ColorBronze
Load Rating (Lbs.)3600
Wheel FinishBronze
Bolt Pattern8 x 6.5 in.
Back Spacing3.5 in.
Offset-44 mm
Backspacing3.5 in.
Center Bore Diameter130.81 mm
Load Rating3600 lbs.
Wheel Bolt Pattern8 x 6.50"
Wheel Diameter17 in.
Wheel Offset-44 mm
Mounting Pad Diameter200 mm
Part FitmentUniversal
Wheel Width9 in.
Vendor Part NumberMR10679080944B
Package Qty1
Package TypeEA
