Vehicle Info NeededMEZIEREPART NUMBER: 680-FP312

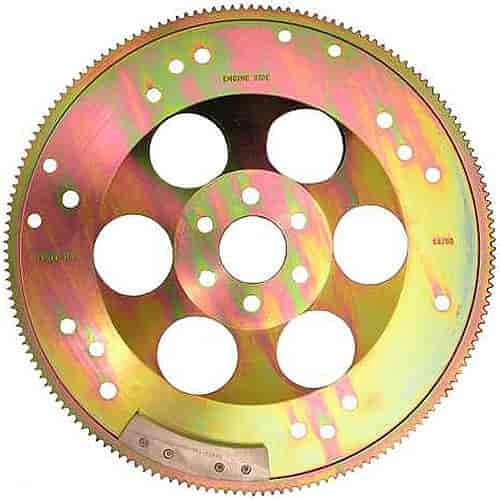

True Billet Flexplate Small Block Ford
$49577
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord
- True Billet Flexplate
- Small Block Ford
- 14.24'' Diameter
- 164 Tooth
- 12 Pitch Tooth Gear
- 7.26 lbs
- Neutral Balance
- 4 on 10.5''/11.38'' and 3 on 10.75''/11.5'' Converter Pattern
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All Meziere flexplates are certified to SFI 29.2.
Features: - Concentric machined to .005"
- One piece design - 100% machined
- Proprietary heat treating process
- Chamfered gear tooth provides better engagement
Application information: - Fits small block Ford windsor style and 5.0
- 164 tooth ring gear
- 12 pitch tooth profile
- Neutral balance
- Weighs 7.26 pounds
- Converter pattern 1 - 4 holes 7/16" diameter on 10.5" bolt circle
- Converter pattern 2 - 4 holes 7/16" diameter on 11.38" bolt circle
- Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle
- Converter pattern 4 - 3 holes 7/16" diameter on 11.5" bolt circle
Part TypeFlexplate
BrandMEZIERE
Package Height1.4
Package Width14.55
Package Length15.75
Weight9.19 PG
Part CategoryPerformance Parts
Ring Gear Tooth Quantity164-tooth
Flexplate MaterialBillet steel
QuantitySold individually
Part FitmentSemi Universal
Safety RatingSFI 29.2
Engine BalanceInternal
Vendor Part NumberFP312
Package Qty1
Package TypeEA
