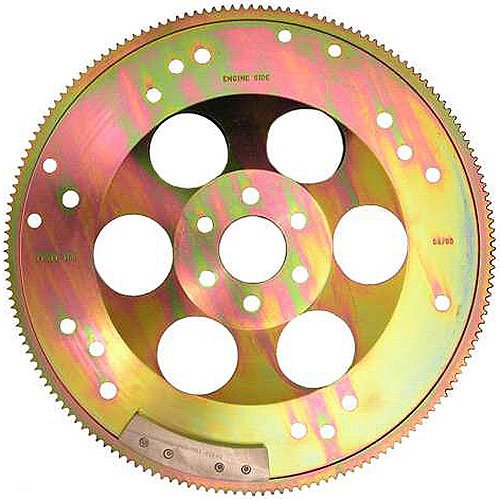

True Billet Flexplate Small Block Ford

Name: True Billet Flexplate Small Block Ford
Brand: MEZIERE
SKU: 680-FP312A
Price: 430.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford

Small Block Ford
14.24'' Diameter
164 Tooth
12 Pitch Tooth Gear
7.4 lbs
28 Oz. Balance
4 on 10.5''/11.38'' and 3 on 10.75''/11.5'' Converter Pattern

These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All Meziere flexplates are certified to SFI 29.2.
Features:
Concentric machined to .005"
One piece design - 100% machined
Proprietary heat treating process
Chamfered gear tooth provides better engagement

Application information:
Fits small block Ford windsor style and 5.0
164 tooth ring gear
12 pitch tooth profile
28 gram counterweight
Weighs 7.4 pounds
Converter pattern 1 - 4 holes 7/16" diameter on 10.5" bolt circle
Converter pattern 2 - 4 holes 7/16" diameter on 11.38" bolt circle
Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle
Converter pattern 4 - 3 holes 7/16" diameter on 11.5" bolt circle

Lightweight Billet Flexplates

Meziere's Billet Flexplates are a 1-piece design that is stronger and more durable than any 2-piece design. The proprietary manufacturing process uses state-of-the-art machining and hardening techniques to ensure superior strength and concentricity. A precise pitch tooth gear offers a better contact area for reliability for engines that are extremely difficult to start. Available for popular domestic applications.

Part TypeFlexplate

Product LineMeziere True Billet Flexplates

BrandMEZIERE

Package Height1.4

Package Width14.8

Package Length14.8

Weight9.2 PG

Part CategoryPerformance Parts

Vendor Part NumberFP312A

Package Qty1

Package TypeEA
