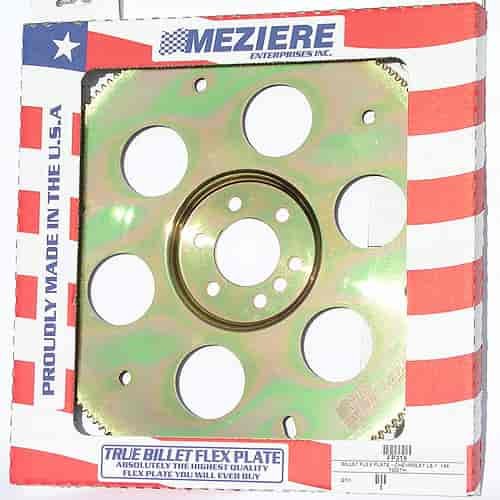

True Billet Flexplate GM LSX 168 Tooth

Name: True Billet Flexplate GM LSX 168 Tooth
Brand: MEZIERE
SKU: 680-FP319
Price: 587.31 USD
Availability: InStock

^$587³¹

Ships on Sep 16, 2026

Lowest Price Guarantee

Chevy

GM LSX
14.20'' Diameter
.17 in Thick
168 Tooth
12 Pitch Tooth Gear
6.95 lbs
Neutral Balance
Stock 3 Hole w/Slot on 281mm; 3 on 10.75'' Dual Converter Pattern

These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.1.
Features:
Concentric machined to .005"
One piece design - 100% machined
Proprietary heat treating process
Chamfered gear tooth provides better engagement

Application information:
Fits GM LS-1 through LS-8
168 tooth ring gear
12 pitch tooth profile
Neutral balance
Weighs 6.95 pounds
Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle
Converter pattern 2 - 2 holes and 1 slot on 11.056" bolt circle (stock LS configuration)

Part TypeFlexplate

BrandMEZIERE

Package Height1.3

Package Width14.5

Package Length15.8

Weight7.85 PG

Part CategoryPerformance Parts

Ring Gear Tooth Quantity168-tooth

Flexplate MaterialBillet steel

Rear Main Seal Style1-piece

QuantitySold individually

Part FitmentSemi Universal

Safety RatingSFI 29.2

Engine BalanceInternal

Vendor Part NumberFP319

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
