Vehicle Info NeededMEZIEREPART NUMBER: 680-FP346

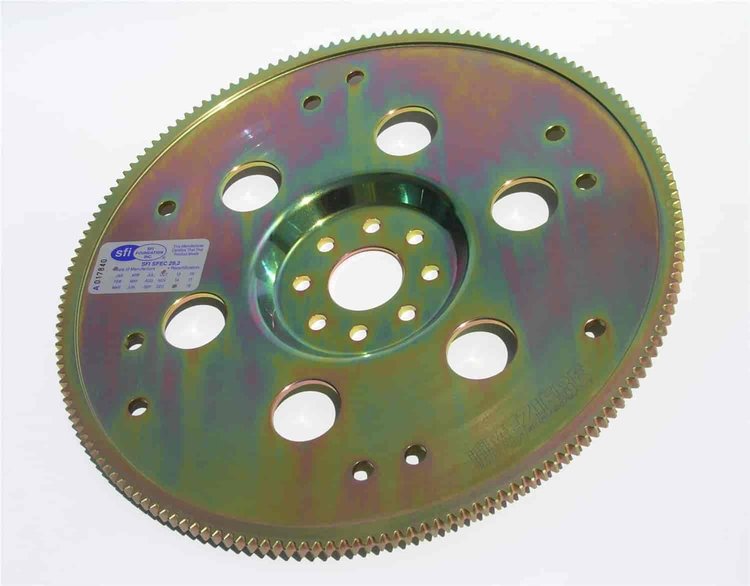

True Billet Flexplate Ford Modular 4.6L/5.8L, 8-Bolt Crank
$49577
Ships on 09/08/2026
Lowest Price GuaranteeFord
- True Billet Flexplate
- Ford Modular 4.6L/5.8L, 8-Bolt Crank
- 14.24'' Diameter
- 164 Tooth
- 12 Pitch Tooth Gear
- 7.26 lbs
- Neutral Balance
- 4 on 10.5''/11.38'' and 3 on 10.75''/11.5'' Converter Pattern
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All Meziere flexplates are certified to SFI 29.2.
Features: - Concentric machined to .005"
- One piece design - 100% machined
- Proprietary heat treating process
- Chamfered gear tooth provides better engagement
Application information: - Fits Ford 4.6/5.8L Modular
- 164 tooth ring gear
- 12 pitch tooth profile
- Neutral balance
- Weighs 7.26 pounds
- Converter pattern 1 - 4 holes 7/16" diameter on 10.5" bolt circle
- Converter pattern 2 - 4 holes 7/16" diameter on 11.38" bolt circle
- Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle
- Converter pattern 4 - 3 holes 7/16" diameter on 11.5" bolt circle
Part TypeFlexplate
BrandMEZIERE
Package Height1.4
Package Width14.5
Package Length15.5
Weight9.18 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
